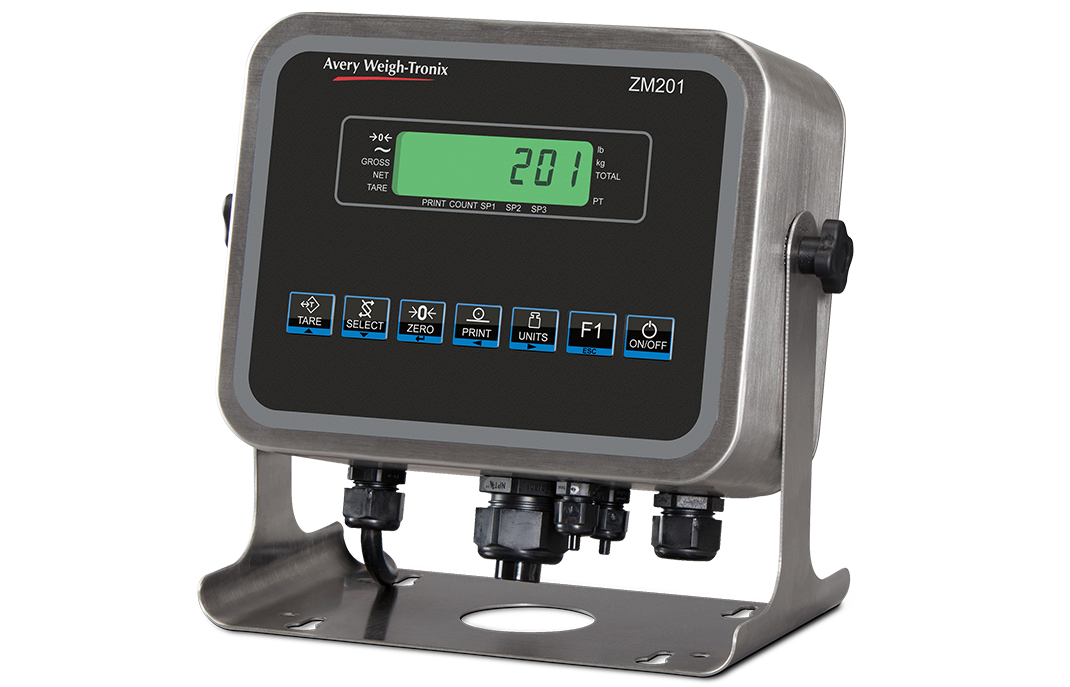

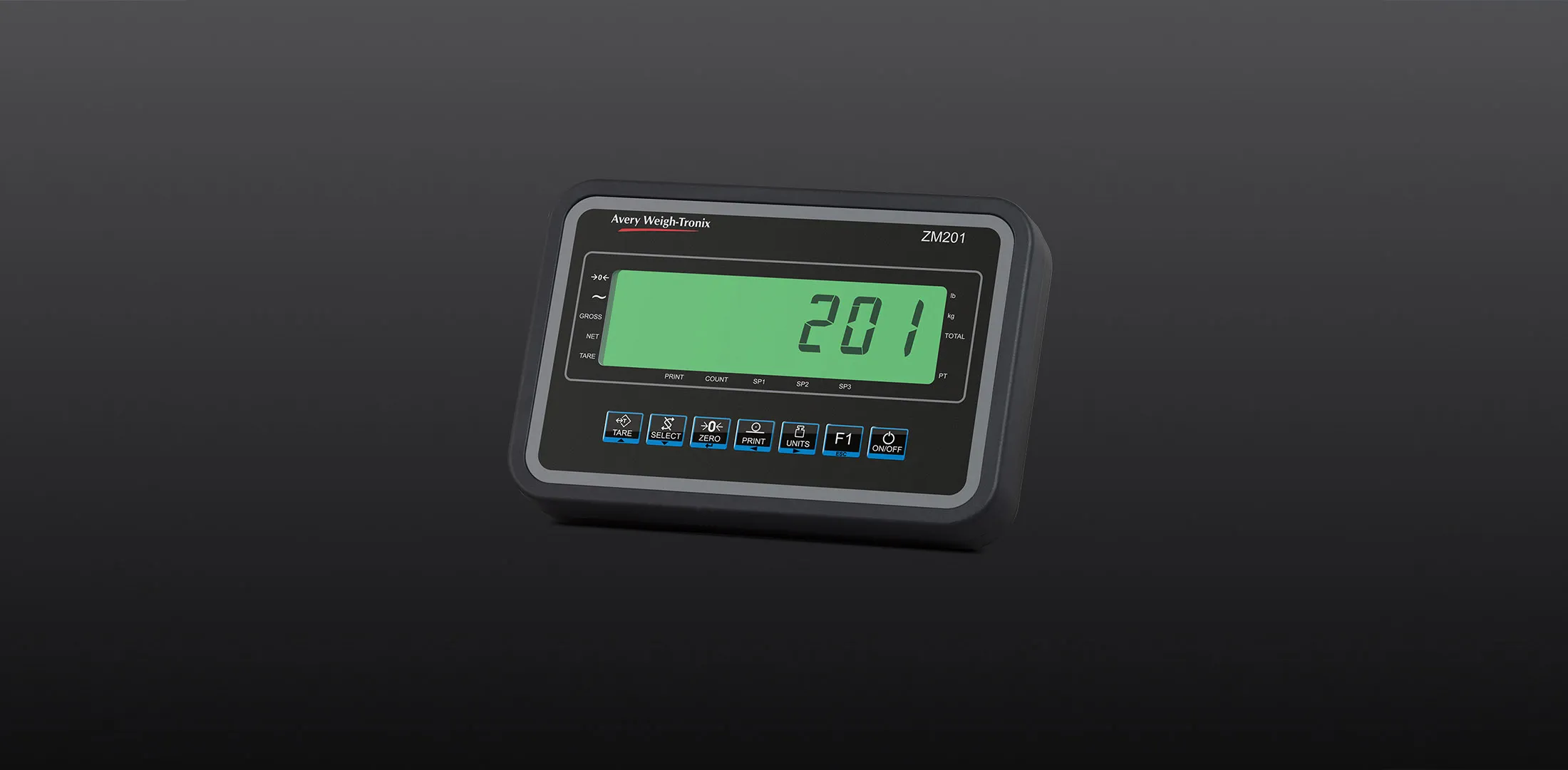

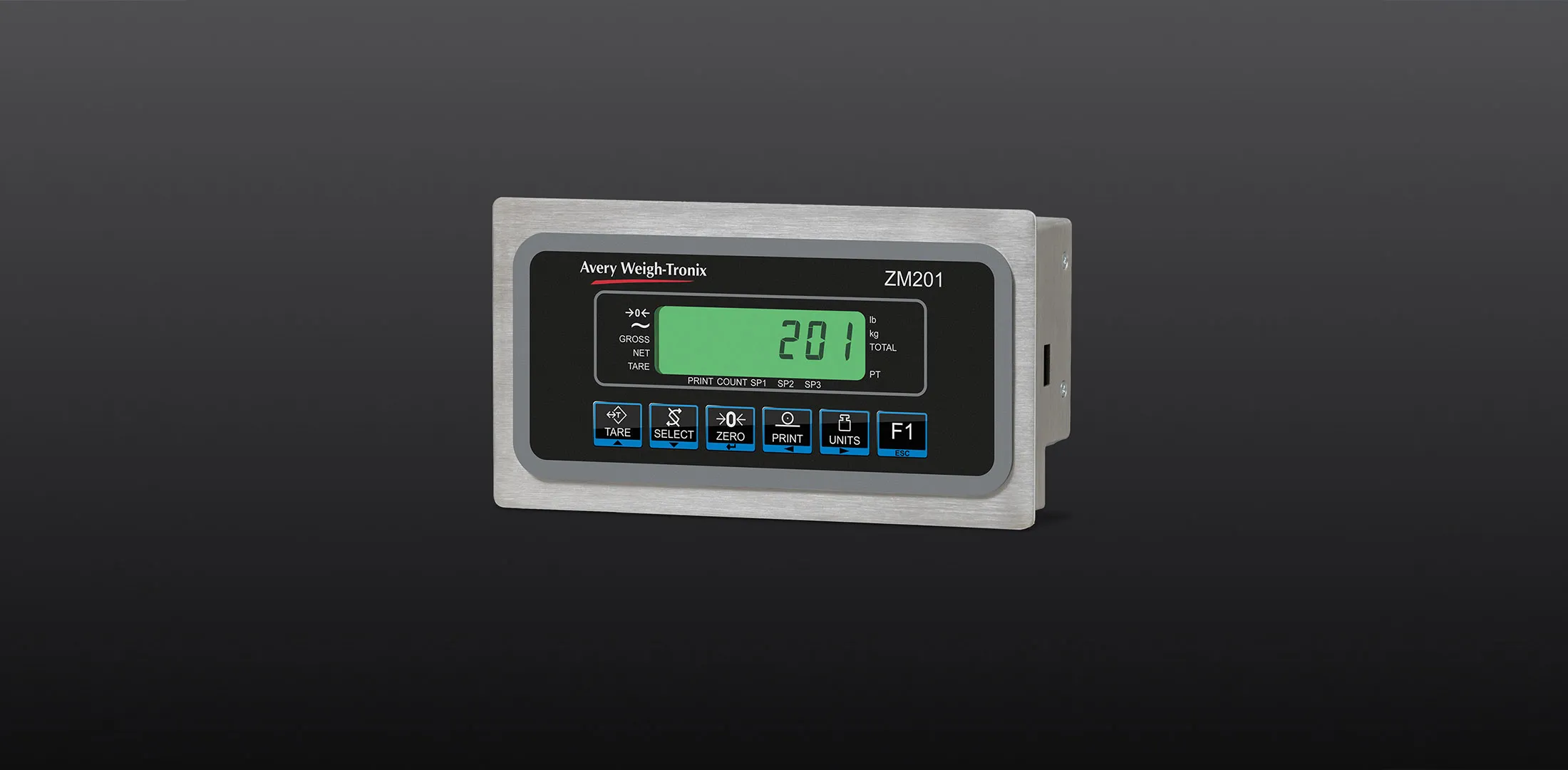

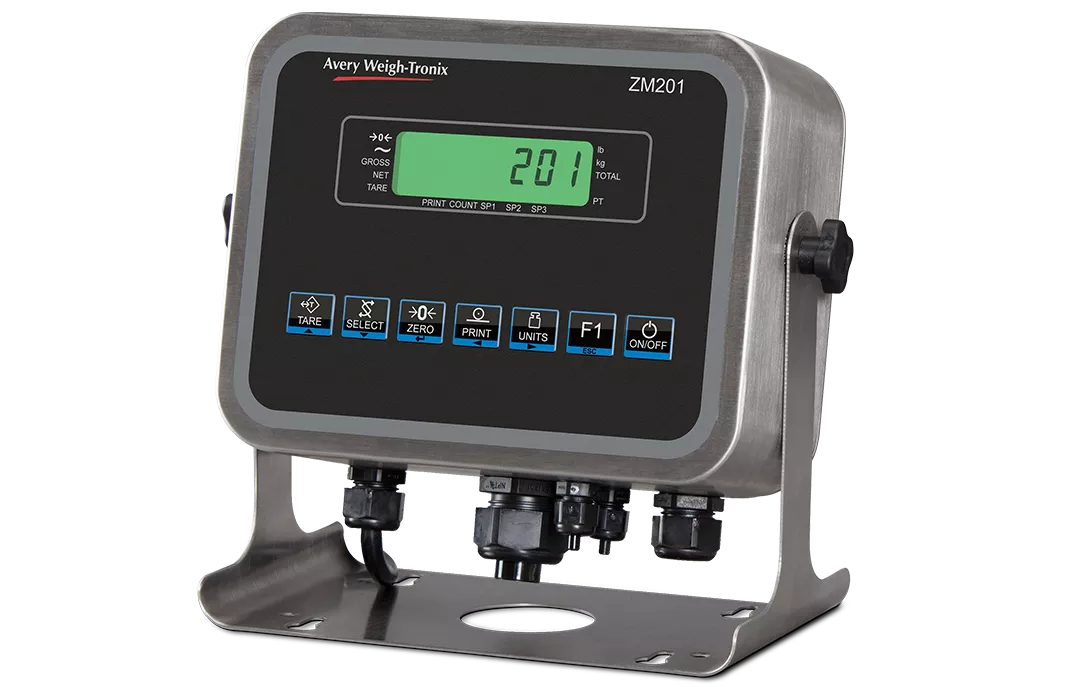

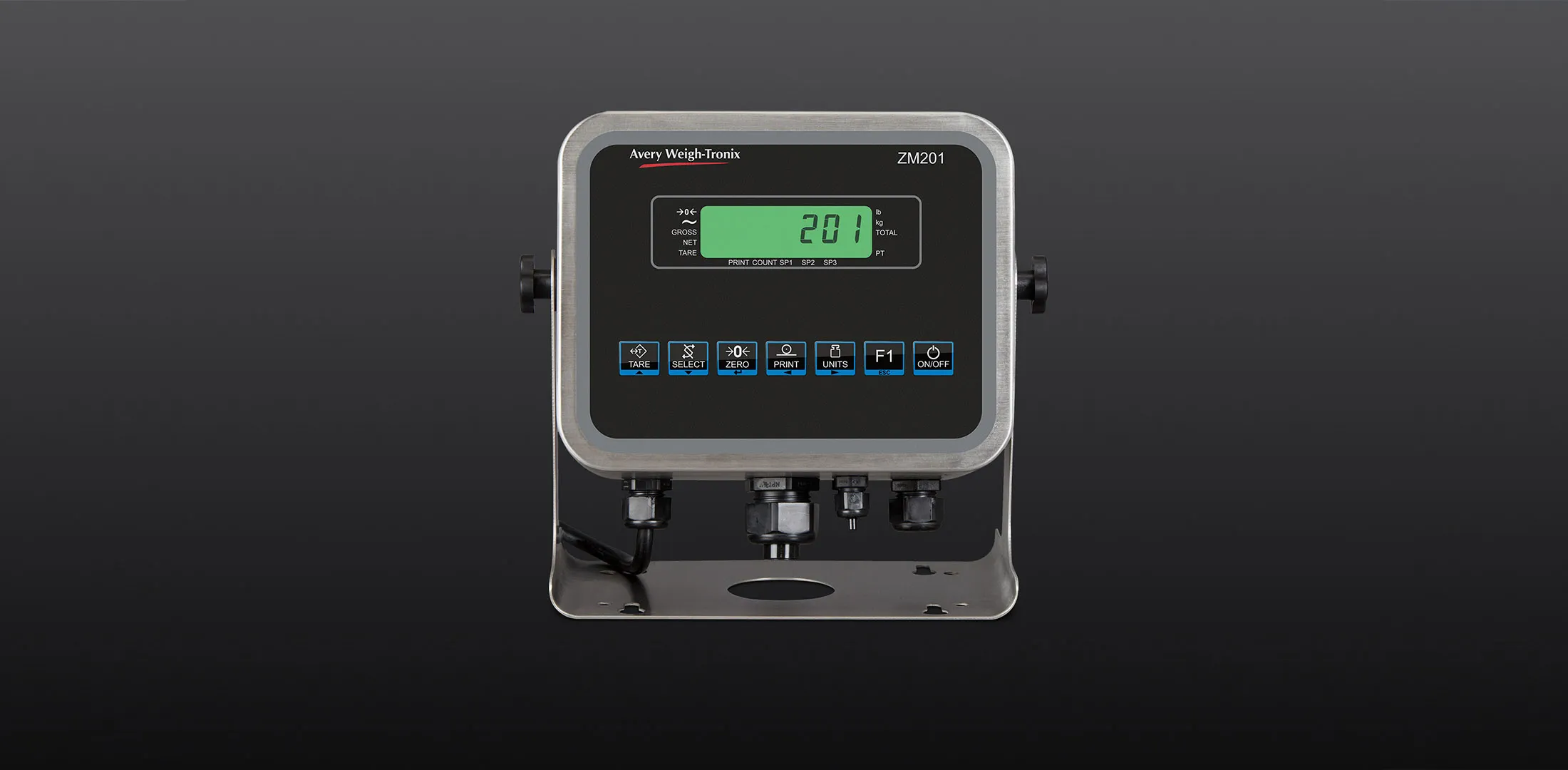

ZM201 Series Indicators

In addition to straightforward weighing functions, the ZM201 weight indicator comes with in-built applications including, checkweighing, counting routines, process control, and peak hold. This allows easy collection data and keep processes running smoothly. Available as standard with a wide range of communication comm ports, suitable for linking up to primers, scanners, and PCs. Standard comm ports include: 2 x RS232, 1 x Ethernet, 3 x inputs, and 3 x outputs.

The ZM201 features a bold and easy-to-read TN display. This can then be read in a variety of lighting conditions, from sunlight to dimly lit environments. The use of this technology, along with the large digit display (on the ABS version), offers the ability to view weight reading from a distance, reducing operator error and eye strain.

Designed to be simple to operate while remaining flexible to print and record a wide range of valuable weight data that is required. The ZM201 as a range of predefined print formats that can easily be modified to meet printing requirements.

This 10,000d legal for trade approved, single base indicator provides outstanding weighing accuracy, perfect for any business that trades by weight. It is designed to connect up to most bench scales, floor scales or hoppers with up to 4 x 350ohm load cells. Approved for use in a wide range of global regions (NTEP /Measurement Canada, UK/EC/OIML).

The ZM201 was designed to run on AC or DC power, making it suitable for applications where power limitations may arise or where portability is required. Optional lithium-iron battery packs are available to allow the indicator to run seamlessly from internal batteries.
