ZM615 Weight Indicator

The ZM615 is an advanced, high-end Lua programmable indicator with a large full graphic display to allow process steps to be customized to meet customer requirements. This along with flexible print formatting makes this indicator ideal for a wide range of process weighing applications from filling, batching, in-motion, checkweighing, to truck, bench and floor scale systems.

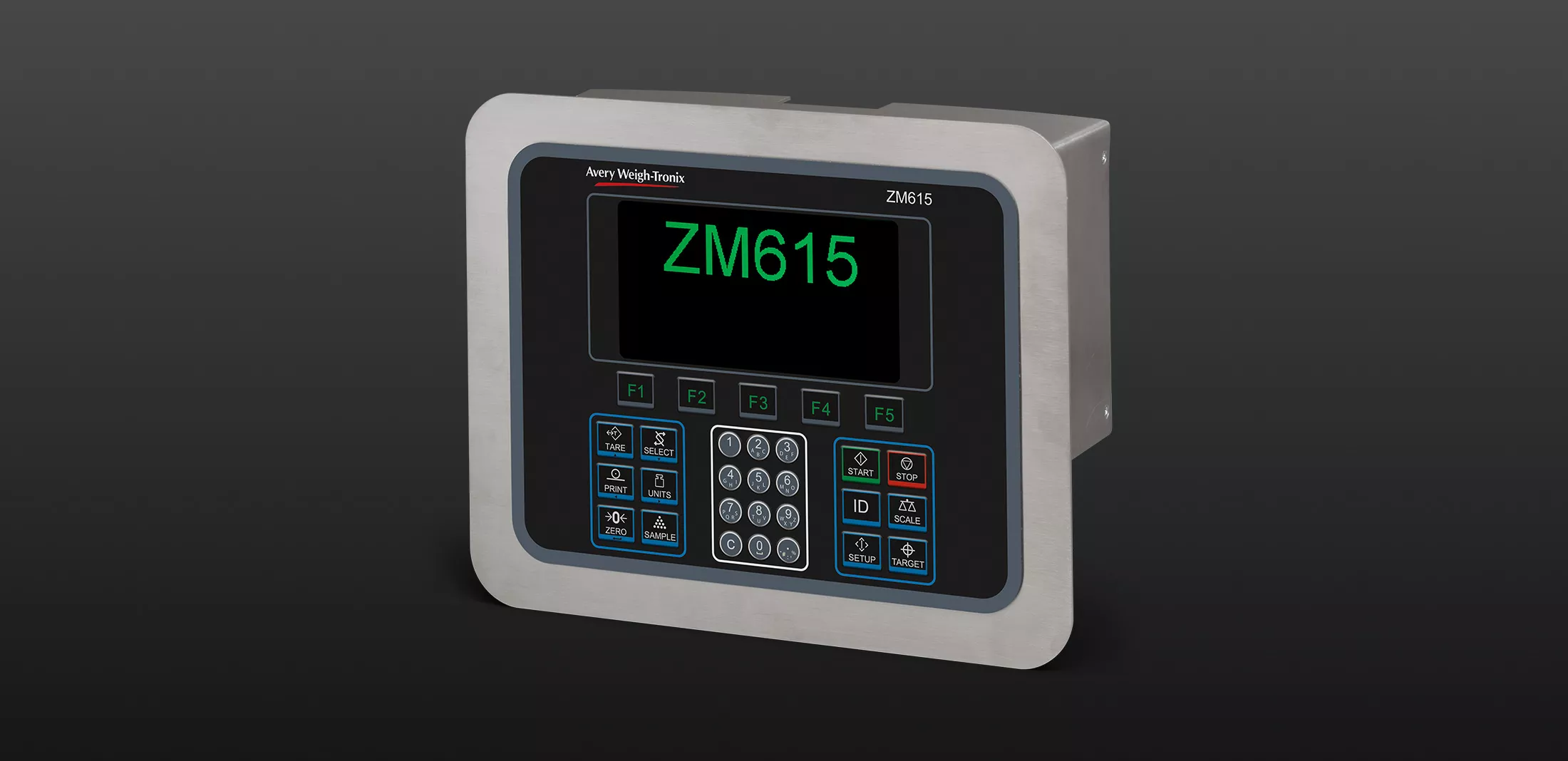

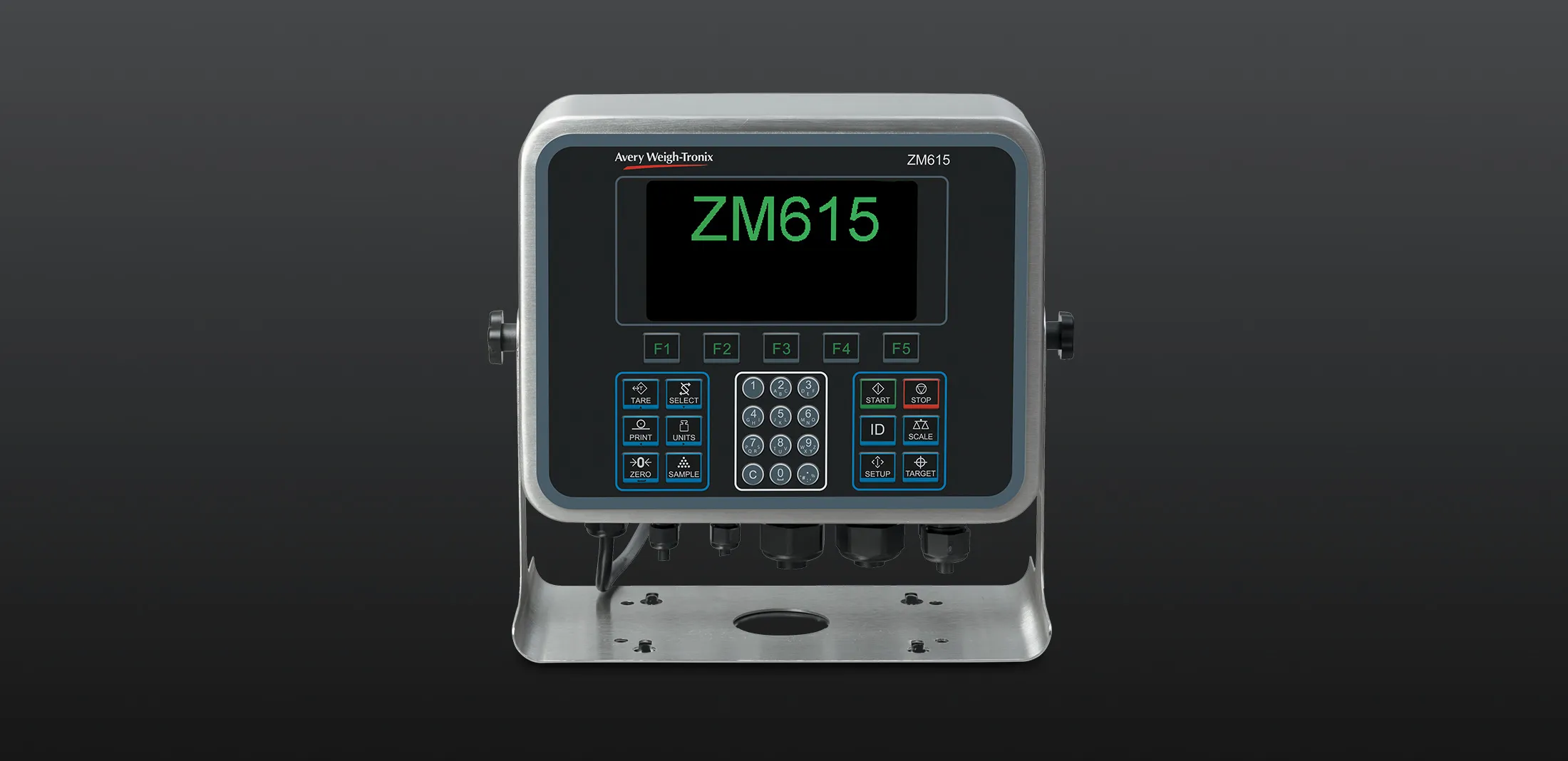

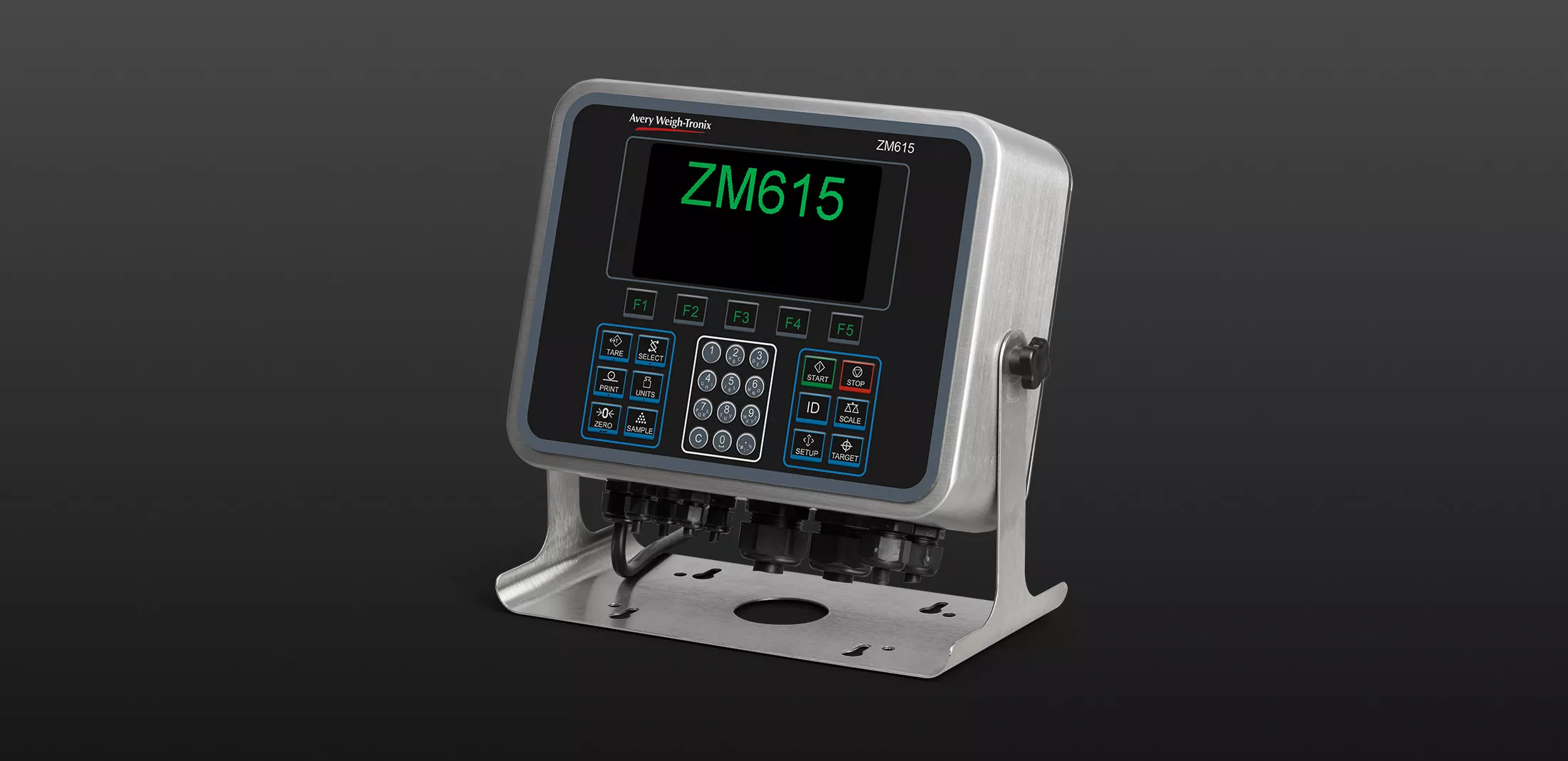

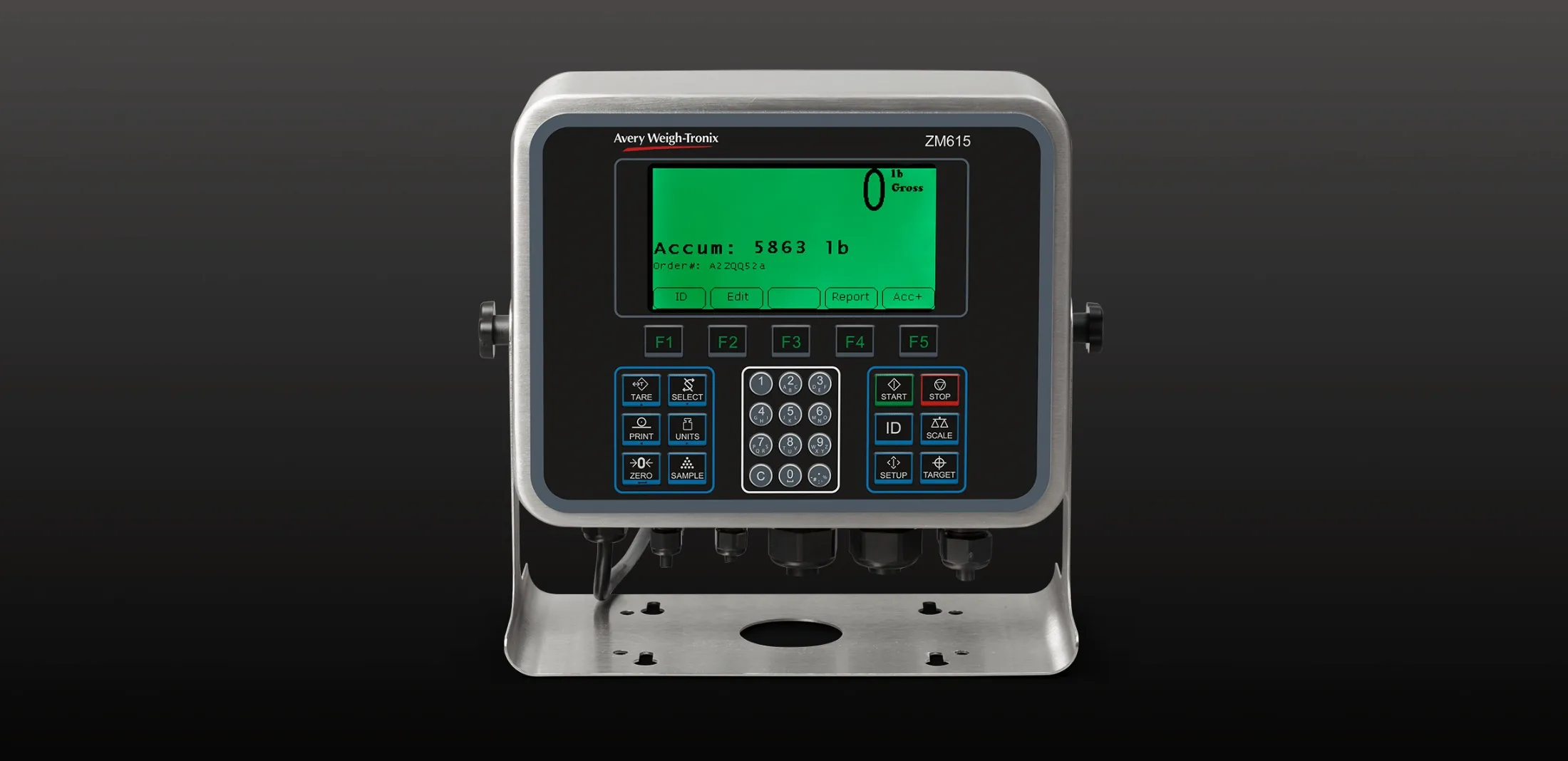

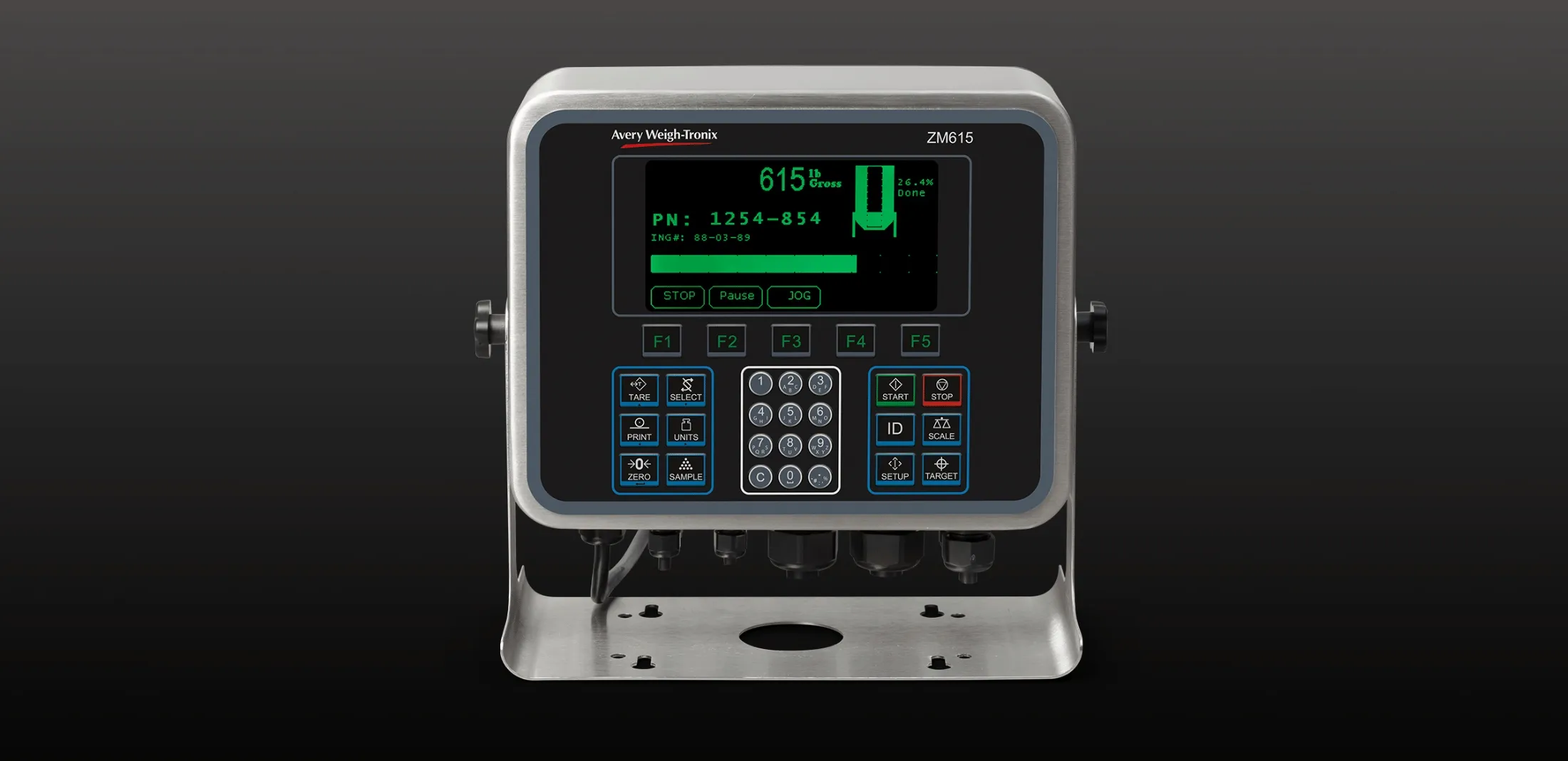

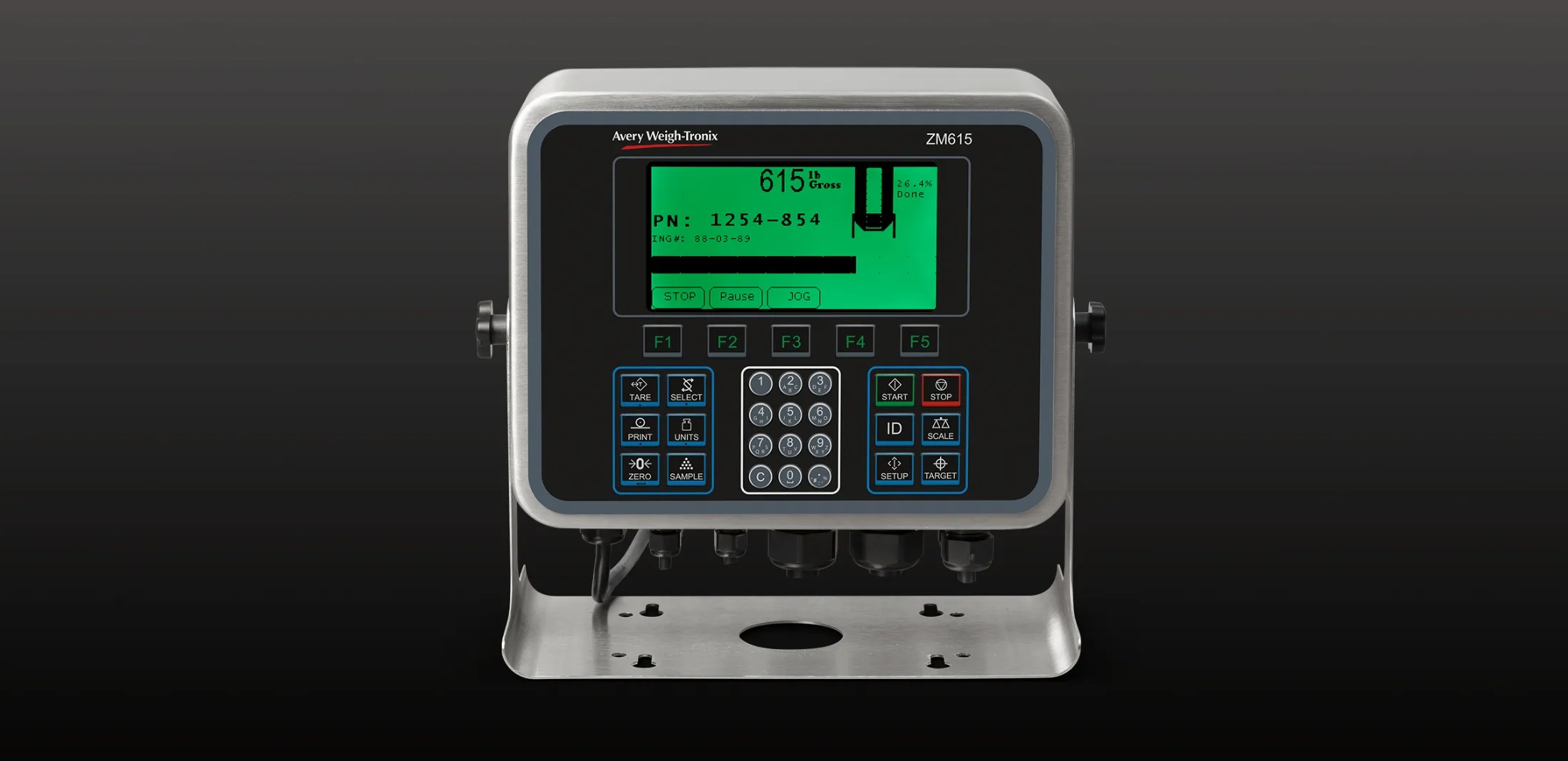

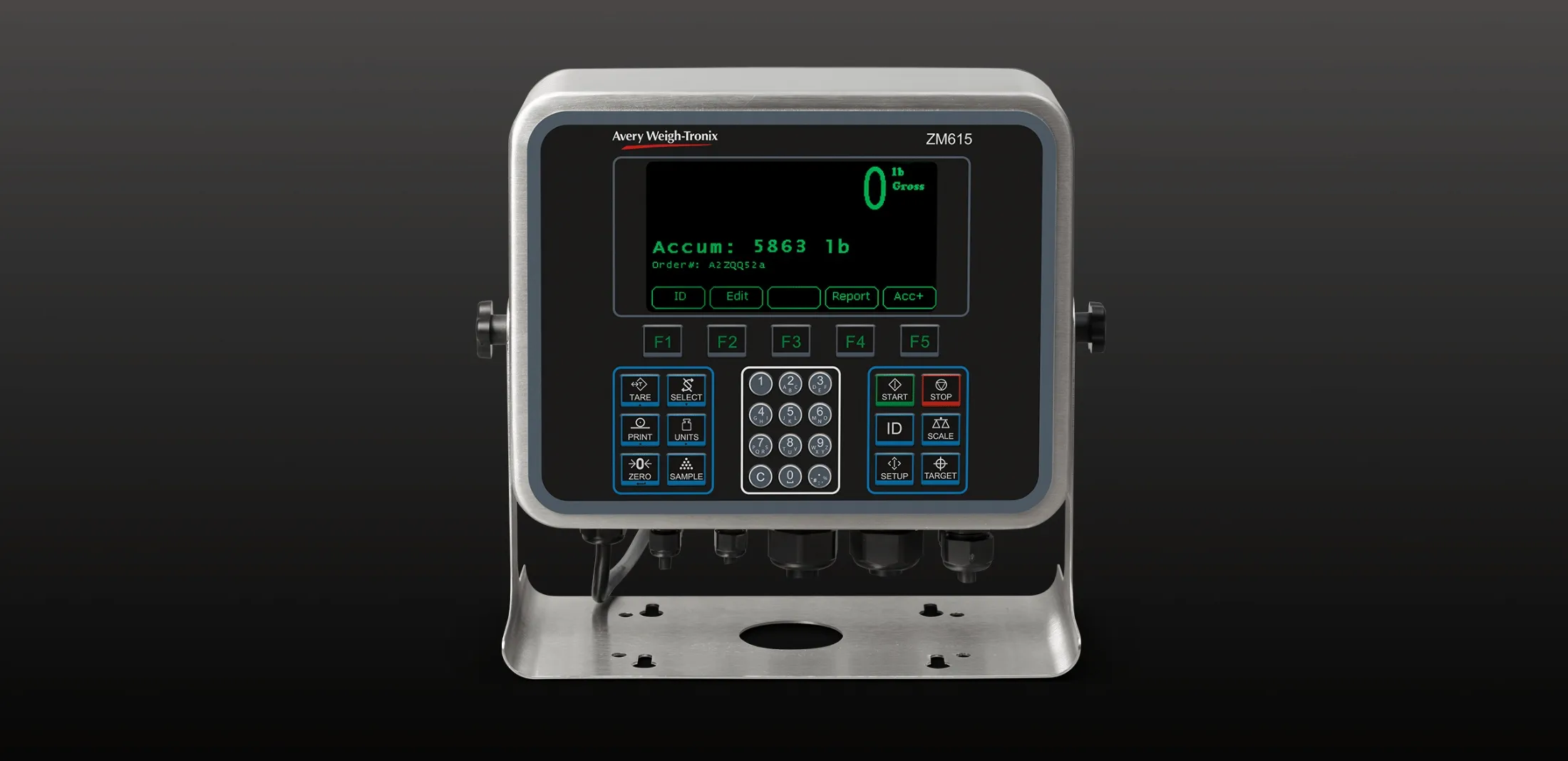

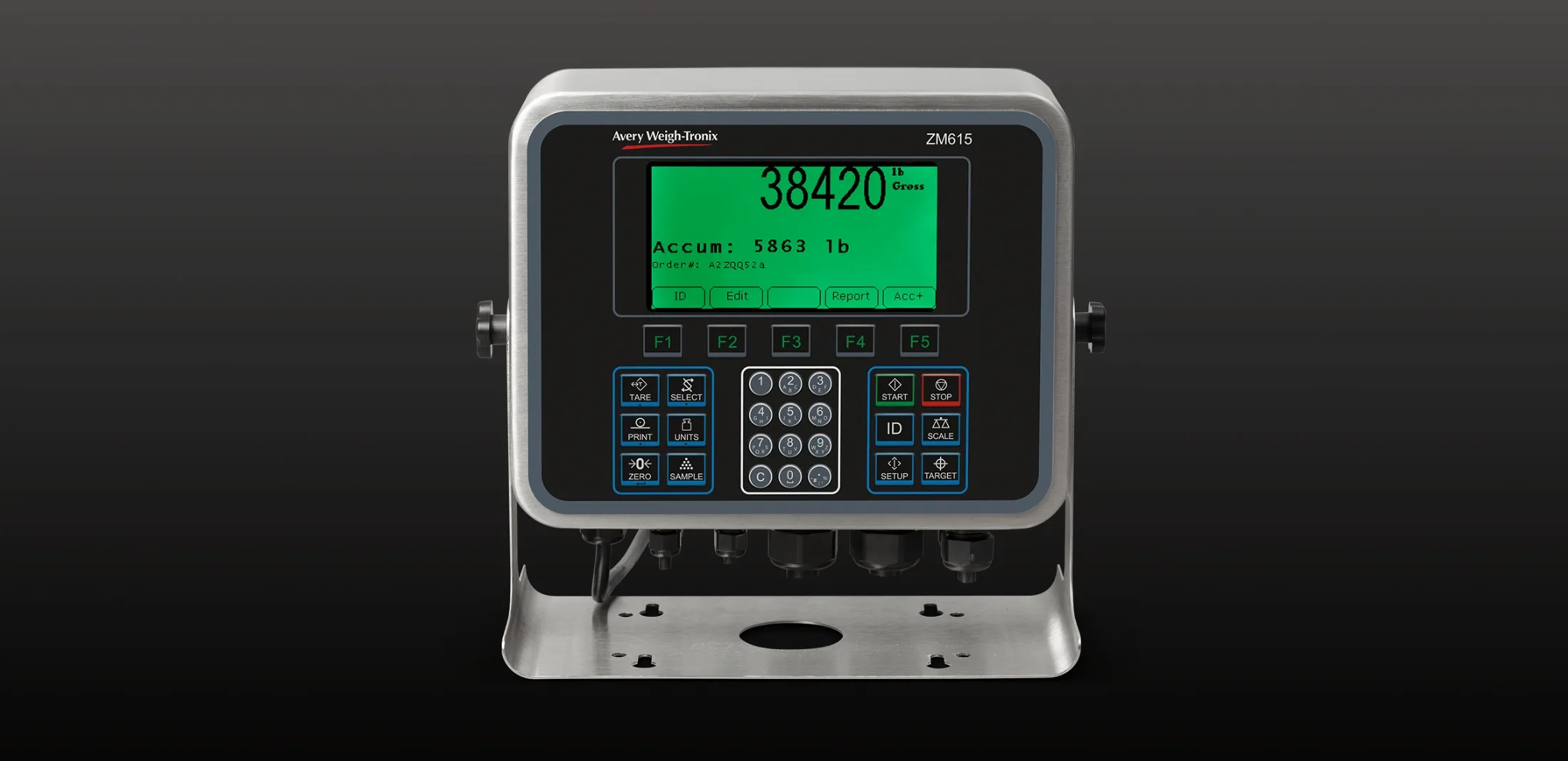

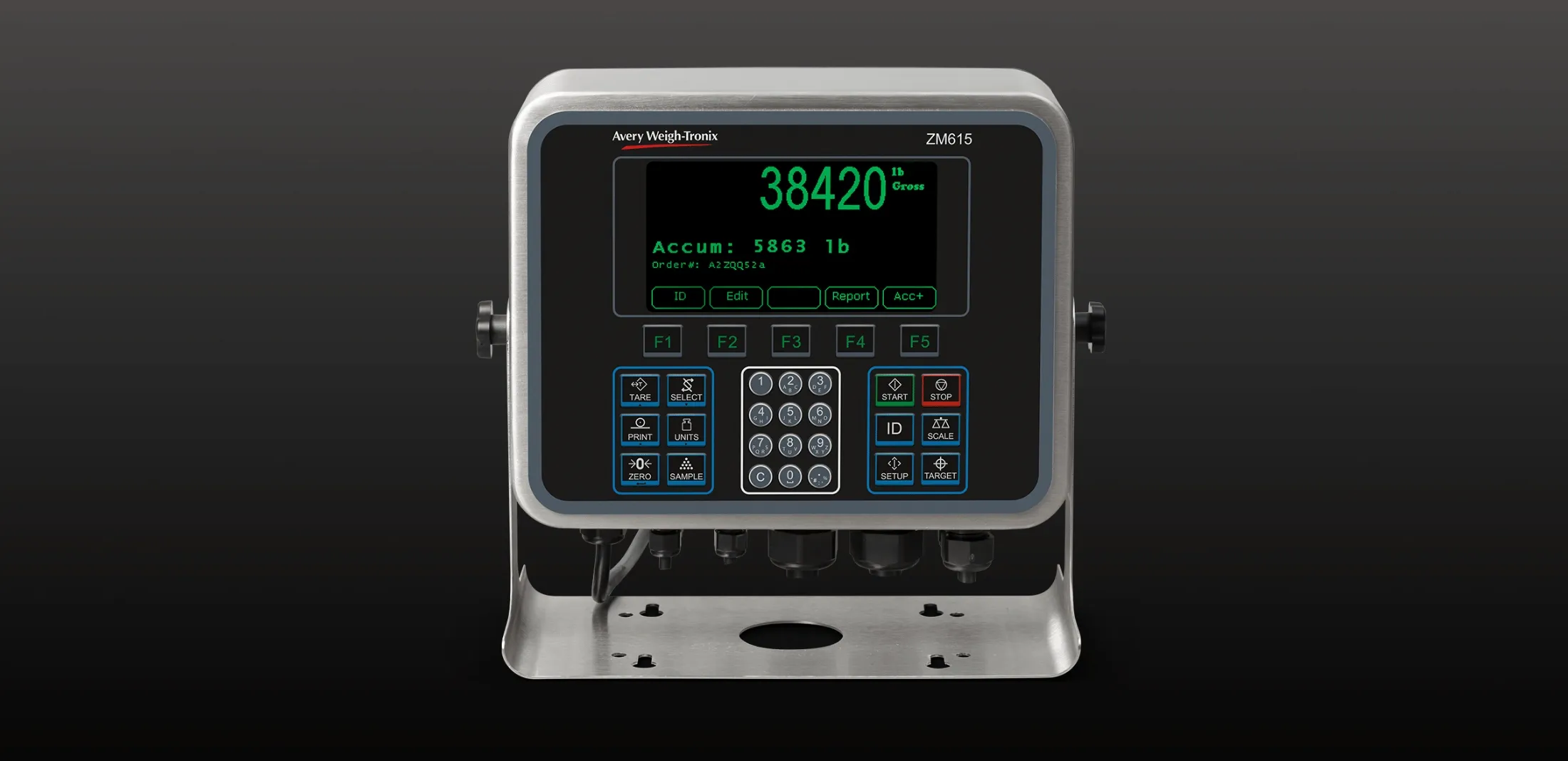

The ultra-bright green and black graphic “Improved Super Twisted Nematic (ISTN)” display provides excellent visibility and color contrast. The large 320×160 pixel screen gives plenty of space to display user-prompts, graphics, images and multiple weight values. With its wide viewing angles, the high contrast is easily visible in extreme working environments and inverts for optimum viewing in brightly lit locations.

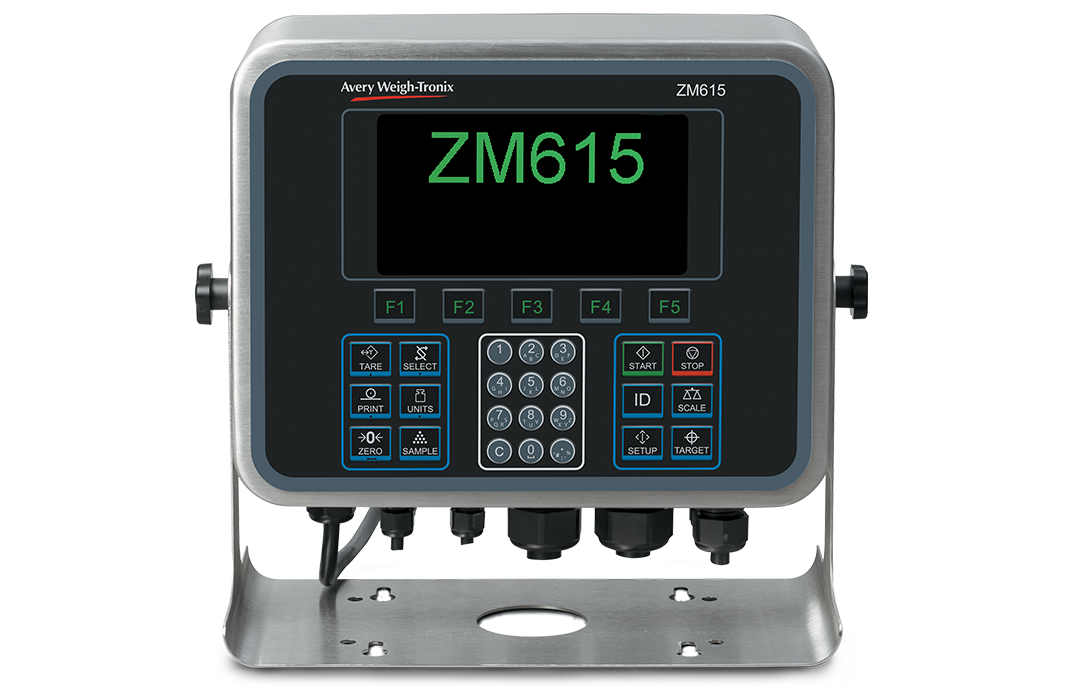

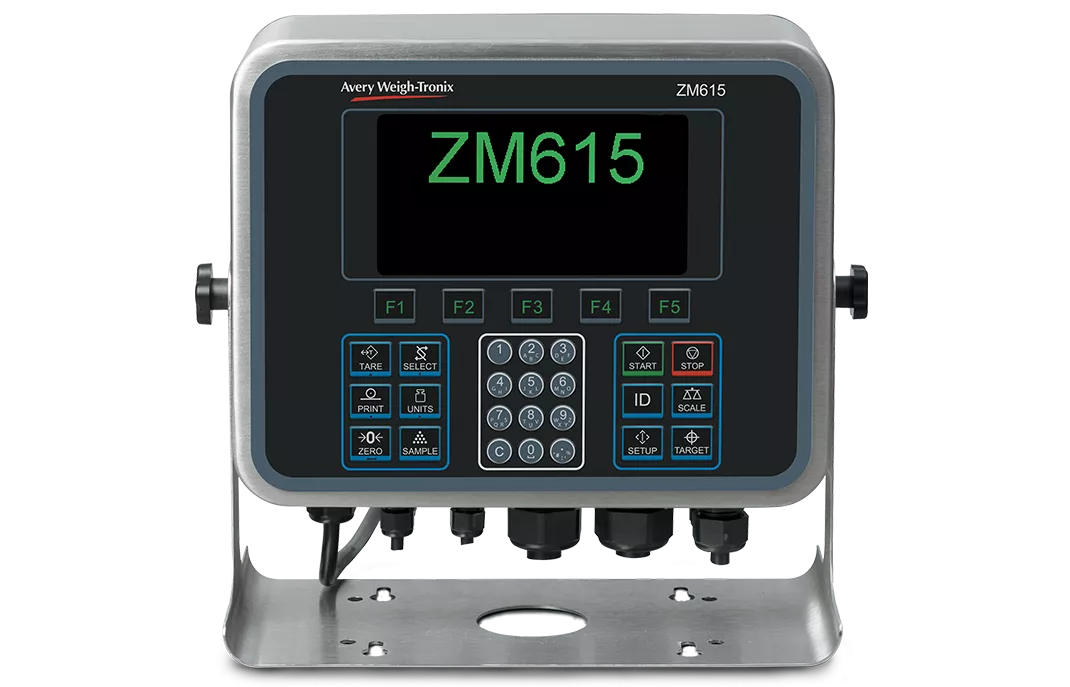

The ZM615 Weight Indicator features a numeric keypad with chemical resistant, metal domed keys, giving the user crisp and positive tactile feedback when compressed. Additionally, five programmable smart keys allow specific weighing tasks to be assigned to the indicator, allowing weighing operations to be carried out quickly and effectively. The ZM615 can also support additional external USB keyboards ideal for entering in and alphanumeric entries.

The ZM615 has multiple serial and USB ports included as standard, with an Ethernet port that can be configured to support ten independent devices with twenty protocols. With an array of connectivity options, the ZM615 is also designed to ensure compatibility and communication between old and new peripheral technologies.

With its 10v excitation and 10,000d legal for trade approval, the ZM615 is suitable for any single or dual base system, making it perfect for businesses that trade by weight. it is designed to connect up to most analog truck scales, bench scales, floor scales and hopper systems. This indicator can drive five scales with up to 24 x 350-ohm load cells or up to two BSQ bases. It is approved for use in a wide range of global regions (NTEP /Measurement in Canada, UK/EC/OIML).

The ZM615 Weight Indicator can hold four option cards internally and an additional four externally with the aid of an option expansion card to provide more flexibility to the indicator to work within a customer process. The option cards that can be used are:

VDC and 4-20 mA
DeviceNet™ kit
Profibus® kit
Current loop kit: Current loop and RS485/RS422
USB device kit: Provides USB interface to PC
Wireless (Ethernet) internal kit: 802.11b/g wireless data communications kit with antenna
Internal 120 VAC Relay module for IP69K model
Scale Input 5 VDC excitation kit
Scale Input 10 VDC excitation with STVS kit
External I/O interface kit
DC Output, 4 relays 3-60VDC at 2A Kit
DC Input, 4 Inputs 4-30VDC kit
AC Output, 4 relays 20-240VAC at 1A kit
AC Input, 4 Inputs 120-240VAC kit
Severe Transient Voltage Suppressor (STVS)
