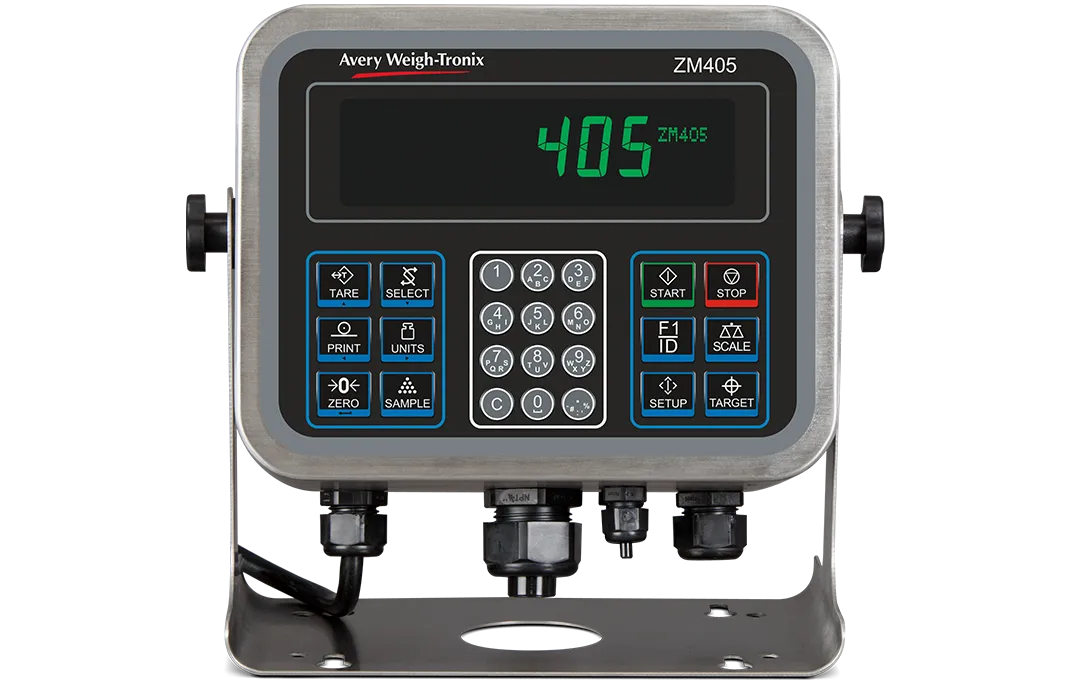

ZM405 Weight Indicator

The ZM405 is an entry-level Lua programmable indicator that allows process steps to be modified to meet customer requirements. This and flexible print formatting make this indicator an ideal fit for process weighing applications such as filling, batching, and in-motion Checkweighing to Truck, Bench, and Floor scale systems.

A high contrast, 7-digit nine segments 0.8″ (20mm) high digits IBN display provides excellent color contrast and enhanced viewing angles. There is also a small side Graphic Array display area that can be used to display various fixed and customizable annunciators/graphics to aid operators.

With its 10v excitation and 10,000d legal for trade approval, the ZM405 is suitable for any single or dual base system, making it perfect for businesses that trade by weight. It is designed to connect up to most analog truck scales, bench scales, floor scales and hopper systems. This indicator can drive two scales with up to 16 x 350-ohm load cells or up to two BSQ bases. It is approved for use in a wide range of global regions (NTEP /Measurement in Canada, UK/EC/OIML).

The ZM405 can hold one option card internally and an additional two externally with the aid of an option exaction card to provide more flexibility. The options cards that can be used are:

VDC and 4-20 mA
DeviceNet™ kit
Profibus® kit
Current loop kit: Current loop and RS485/RS422
USB device kit: Provides USB interface to PC
Wireless (Ethernet) internal kit: 802.11b/g wireless data communications kit with antenna
Internal 120 VAC Relay module for IP69K model
Scale Input 5 VDC excitation kit
Scale Input 10 VDC excitation with STVS kit
External I/O interface kit
DC Output, 4 relays 3-60VDC at 2A Kit
DC Input, 4 Inputs 4-30VDC kit
AC Output, 4 relays 20-240VAC at 1A kit
AC Input, 4 Inputs 120-240VAC kit
Severe Transient Voltage Suppressor (STVS)

The ZM405 Indicator offers multi-connectivity, ensuring compatibility and communication between old and new peripheral technologies.

An Ethernet port is included as standard, two RS232 serial interface ports provide data transfer to older equipment and a USB host port facilitates communication with printer or keyboard and data transfer via a USB storage device.

USB device, Current Loop, RS485/ RS422, and Ethernet wireless options are also available as option cards.
