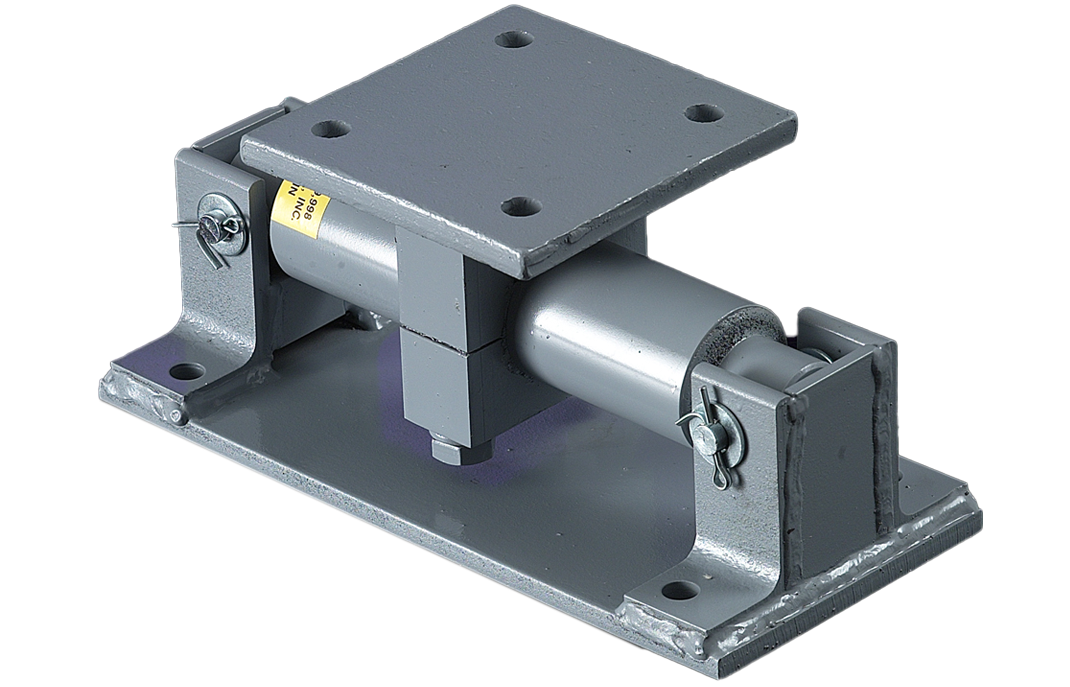

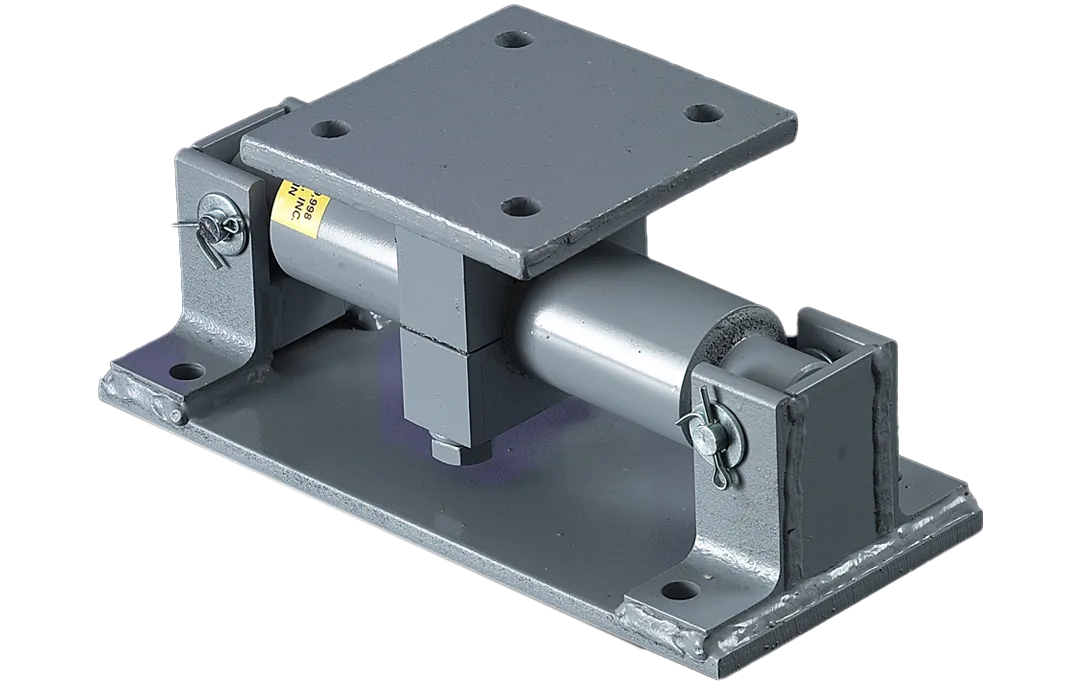

DEBWB Double Ended Batching Weigh Bars

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales.

You are here: Home » Products » DEBWB Double Ended Batching Weigh Bars

Overview

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption to your operations.

The DEBWB is a 350 ohm, full bridge, double ended batching Weigh Bar mounted in a bracket assembly.

Corrosion protection, mild steel weigh bar available in a range of capacities

The DEBWB is made of mild steel finished with epoxy paint for corrosion protection.

They are available in kits with capacities from 750 lbs to 400,000 lbs. It is not approved for trade by weight and comes with a 0.25% accuracy rating.

Ideal for food and chemical weighing applications

The DEBWB features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem.

The chain link assemblies are also fully washdown protected, for food and chemical applications.

18395-0039MTS

  • Length 12in
  • Height 4in
  • Weighing Increments 0.25lb
  • Maximum Capacity 1250lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 0.1kg
  • Maximum Capacity 500kg

18545-0038MTS

  • Length 15in
  • Height 5in
  • Weighing Increments 0.5lb
  • Maximum Capacity 2500lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 0.2kg
  • Maximum Capacity 1000kg

17203-0033MTS

  • Length 13.25in
  • Height 6in
  • Weighing Increments 1lb
  • Maximum Capacity 5000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 0.4kg
  • Maximum Capacity 2000kg

17203-0058MTS

  • Length 14in
  • Height 7in
  • Weighing Increments 2lb
  • Maximum Capacity 10000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 0.8kg
  • Maximum Capacity 4000kg

17203-0074MTS

  • Length 14in
  • Height 7in
  • Weighing Increments 2.5lb
  • Maximum Capacity 12500lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 1kg
  • Maximum Capacity 5000kg

17203-0090MTS

  • Length 18.5in
  • Height 8.75in
  • Weighing Increments 4lb
  • Maximum Capacity 20000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 1.6kg
  • Maximum Capacity 8000kg

17203-0116MTS

  • Length 19.88in
  • Height 9.38in
  • Weighing Increments 5lb
  • Maximum Capacity 25000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 2kg
  • Maximum Capacity 10000kg

13586-0021MTS

  • Length 20in
  • Height 9in
  • Weighing Increments 10lb
  • Maximum Capacity 50000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 4kg
  • Maximum Capacity 20000kg

18580-0018MTS

  • Length 22in
  • Height 10.5in
  • Weighing Increments 15lb
  • Maximum Capacity 75000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 6kg
  • Maximum Capacity 30000kg

18613-0019MTS

  • Length 24in
  • Height 12in
  • Weighing Increments 20lb
  • Maximum Capacity 100000lb
  • Load Cell Type Bending Weigh Bar
  • Material Mild Steel
  • Weighing Increments 8kg
  • Maximum Capacity 40000kg
