Transmits up to 300 ft. indoors/indirect or 1,000 ft. or more outdoors/line-of-sight, using frequency-hopping spread spectrum transmission to reduce interference.
Scale Link 2

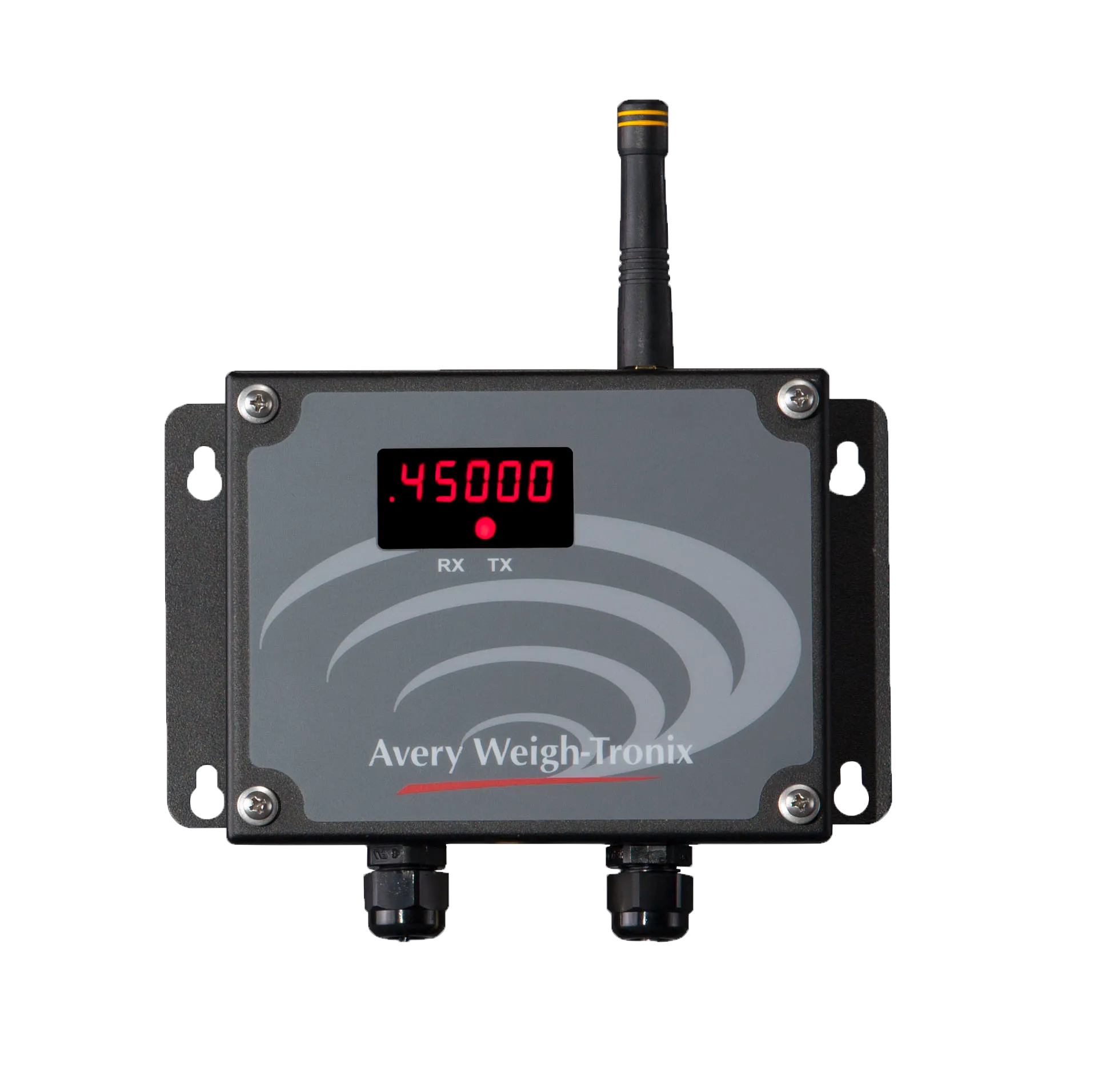

ScaleLink 2 replaces standard serial communication cables with a reliable wireless connection between scale indicators, remote displays, computers, and printers.
Overview
ScaleLink 2 is a technician-friendly wireless solution built for the weighing industry. Out of the box, it transmits and receives serial communications between scale indicators, remote displays, computers, and printers — standing in for a standard serial cable. Going wireless removes the need for expensive wiring, trenching, and conduit, while also reducing exposure to transient voltage damage from events like lightning strikes.
Each ScaleLink 2 features:
Works with virtually any scale indicator, remote display, computer, or printer via RS-232, RS-422, or 20mA Current Loop (Active and Passive) — with multi-drop support for up to 32 units.
Built-in LED display window and diagnostic tools let technicians check transmit/receive data and adjust baud rate or radio channel on the spot.
Pairs with XR-4500TL remote displays for wireless traffic light control in vehicle scale applications.
Specifications
| Spec | Detail |
|---|---|
| Wireless Specs | 900 MHz, frequency hopping, 6 selectable radio channels, throughput 9600 bps, transmit power 250mW (2.4 GHz available) |
| Device Communications | RS-232 (fully configurable), RS-422, 20mA Current Loop (Active & Passive) |
| Range | Indoor/Indirect: up to 300 ft. (90m) Outdoor/Line-of-Sight: up to 1000 ft. (300m) or more |
| Power Requirements | 9–24VDC; may be supplied by indicator or other device directly. AC adapter included. |
| Enclosure | Powder-coated mild steel. Water-resistant (NEMA 4). Watertight cable glands. Viewing window for status LEDs. |
| Dimensions | 6.75″ x 7.75″ x 1.625″ incl. antenna (171mm x 197mm x 41mm) |
| Weight | 1.7 lb (0.75 kg) approx. w/ adapter |
| Operating Temperature | 14°F to 120°F (-10°C to 50°C) |
| Approvals | FCC (USA), IC (Canada), C-TICK (AUS), ETSI (Europe), ETL (Canada & USA) |
| Warranty | Two (2) year standard warranty |
Product Specifications
- Hazardous No
- Legal for Trade Capable No
- IP Rating IP20
- Material 1/4" Steel Deck
