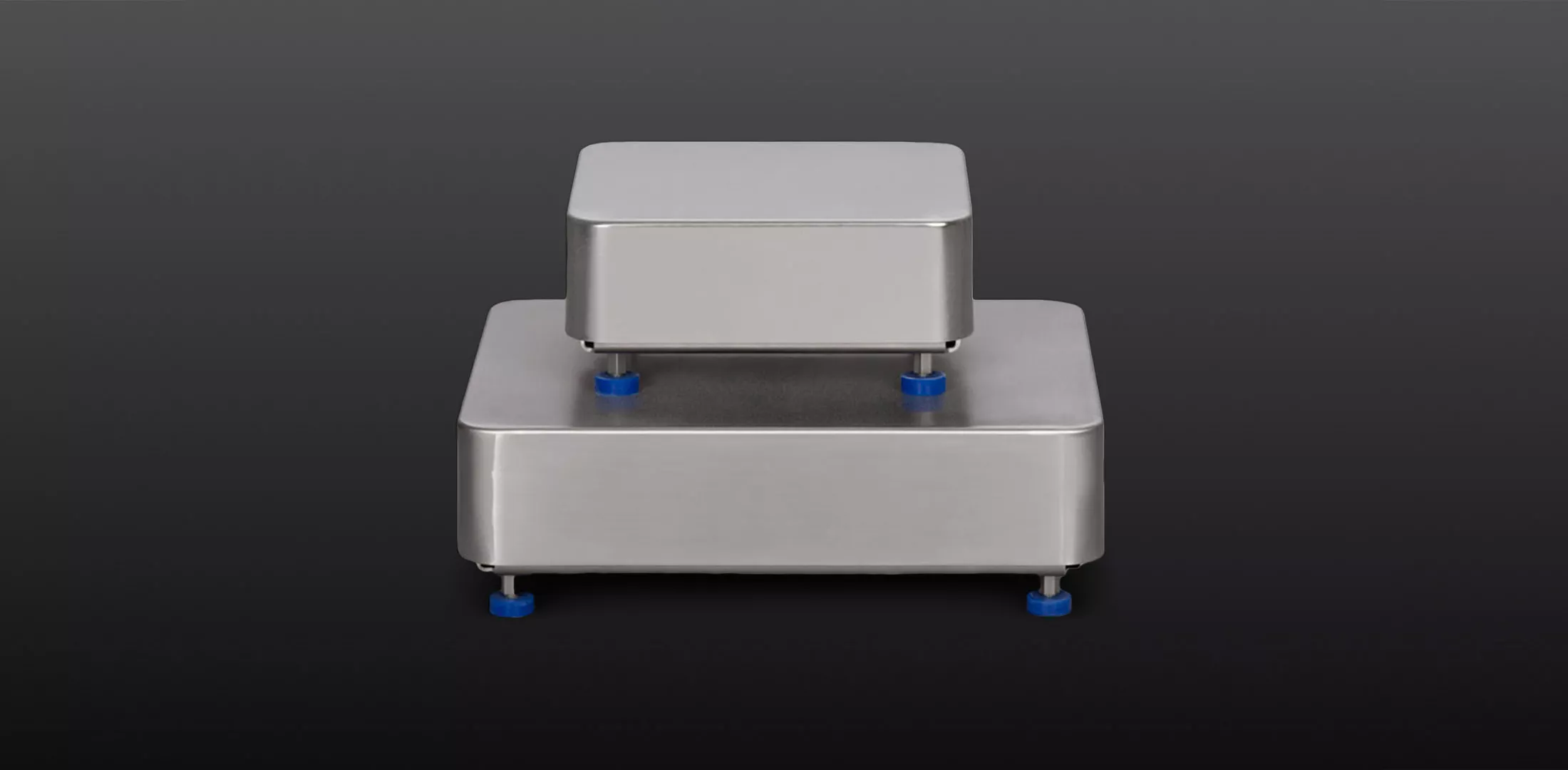

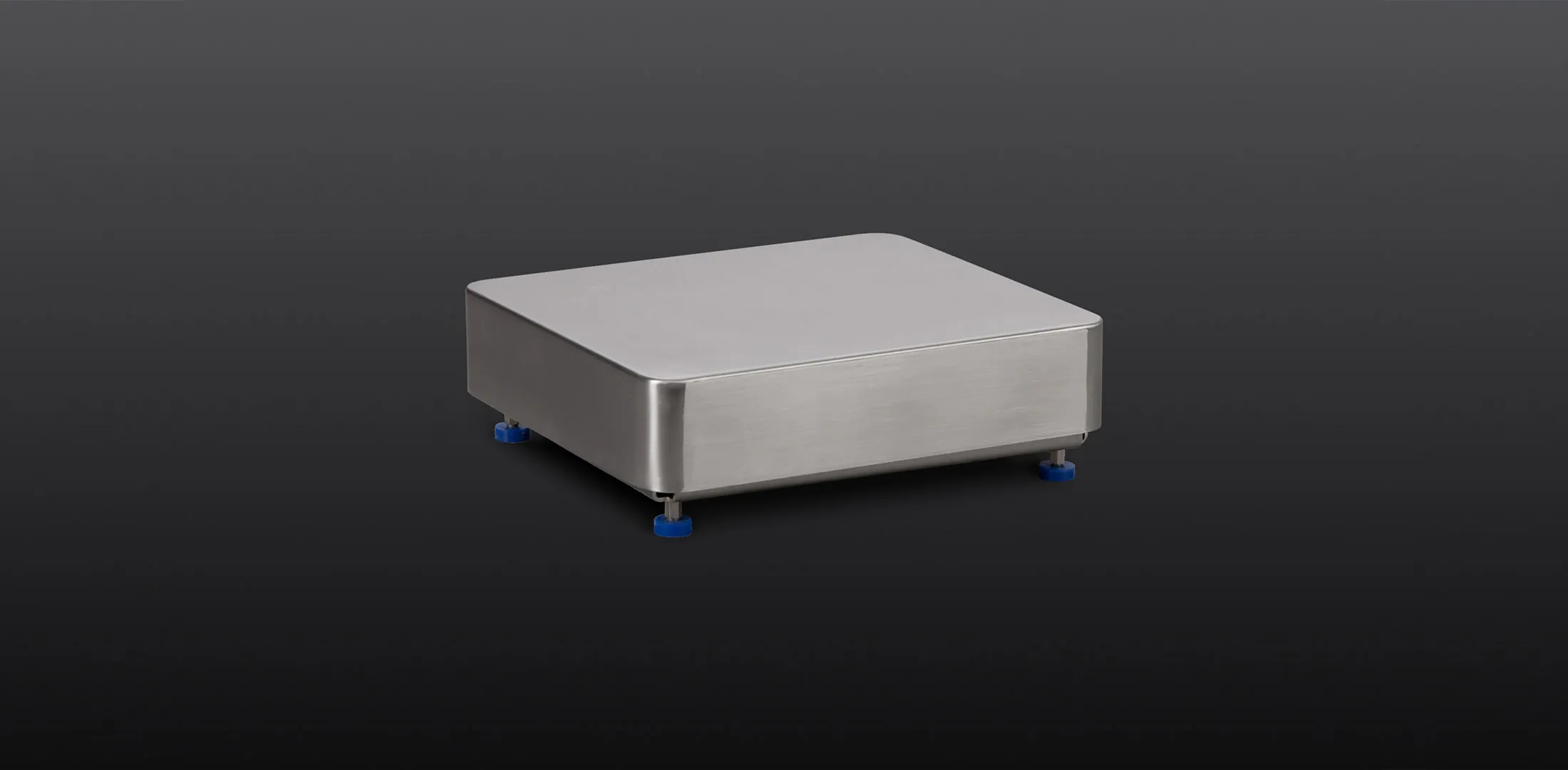

BSG Torsion Bench Scale Base (6lb-100lb | 3kg-60kg)

3000d legal for trade Single loadcell torsion bench base. Robust, accurate & very reliable, 500% shock load protection available in food grade stainless steel, NSF approved for food areas, IP69K easy to clean. Ideal for warehouse or food manufacture, normally combined with an Avery Weigh-Tronix Indicator



Overview

Certified by NSF to NSF/ANSI Standard 3-A, the torsion base BSF and BSG are ideal bench bases for use within all types of food environment. These fully stainless steel bench scale bases are IP69K washdown and corrosion resistant, making them ideal for food and food processing industries.



BSG Torsion Bench Scale Base features

The Torsion bench scale bases can stand the abuse of a busy industrial environment with minimal maintenance. Their 500% overload protection and breakaway load transfer system, which protects the weight sensor, makes these bench scale bases inherently tough and dependable.

The Torsion bench scale bases are particularly rugged by design – engineered to resist overloading and sudden dropped loads.

Designed to remain accurate and reliable at all times, the BSG is 3000 division NTEP and EC approved. It comes in a range of sizes from 9″ x 9″ to 12″ x 14″ (210mm x 210mm to 250mm x 310mm) and covers capacities ranging from 6 lb to 100 lb (3kg to 30kg).

WEBBSG300015

  • Length 12in
  • Height 4.3in
  • Weighing Increments 0.01lb
  • Maximum Capacity 30lb
  • Power Source
  • Indicator Type None
  • Legal for Trade Capable Yes
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 15kg

WEBBSG30003

  • Length 8.75in
  • Height 3.7in
  • Weighing Increments 0.002lb
  • Maximum Capacity 6lb
  • Power Source
  • Indicator Type None
  • Legal for Trade Capable Yes
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 3kg

WEBBSG300030

  • Length 12in
  • Height 4.3in
  • Weighing Increments 0.02lb
  • Maximum Capacity 60lb
  • Power Source
  • Indicator Type None
  • Legal for Trade Capable Yes
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 30kg

WEBBSG300050

  • Length 12in
  • Height 4.3in
  • Weighing Increments 0.05lb
  • Maximum Capacity 100lb
  • Power Source
  • Indicator Type None
  • Legal for Trade Capable Yes
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 50kg

WEBBSG30006

  • Length 8.75in
  • Height 3.7in
  • Weighing Increments 0.005lb
  • Maximum Capacity 12lb
  • Power Source
  • Indicator Type None
  • Legal for Trade Capable Yes
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 6kg

Related resources

BSF/BSG Frequently Asked Questions – EN Download
BSF/BSG Torsion Base Technical Specifications – EN Download
