Overview

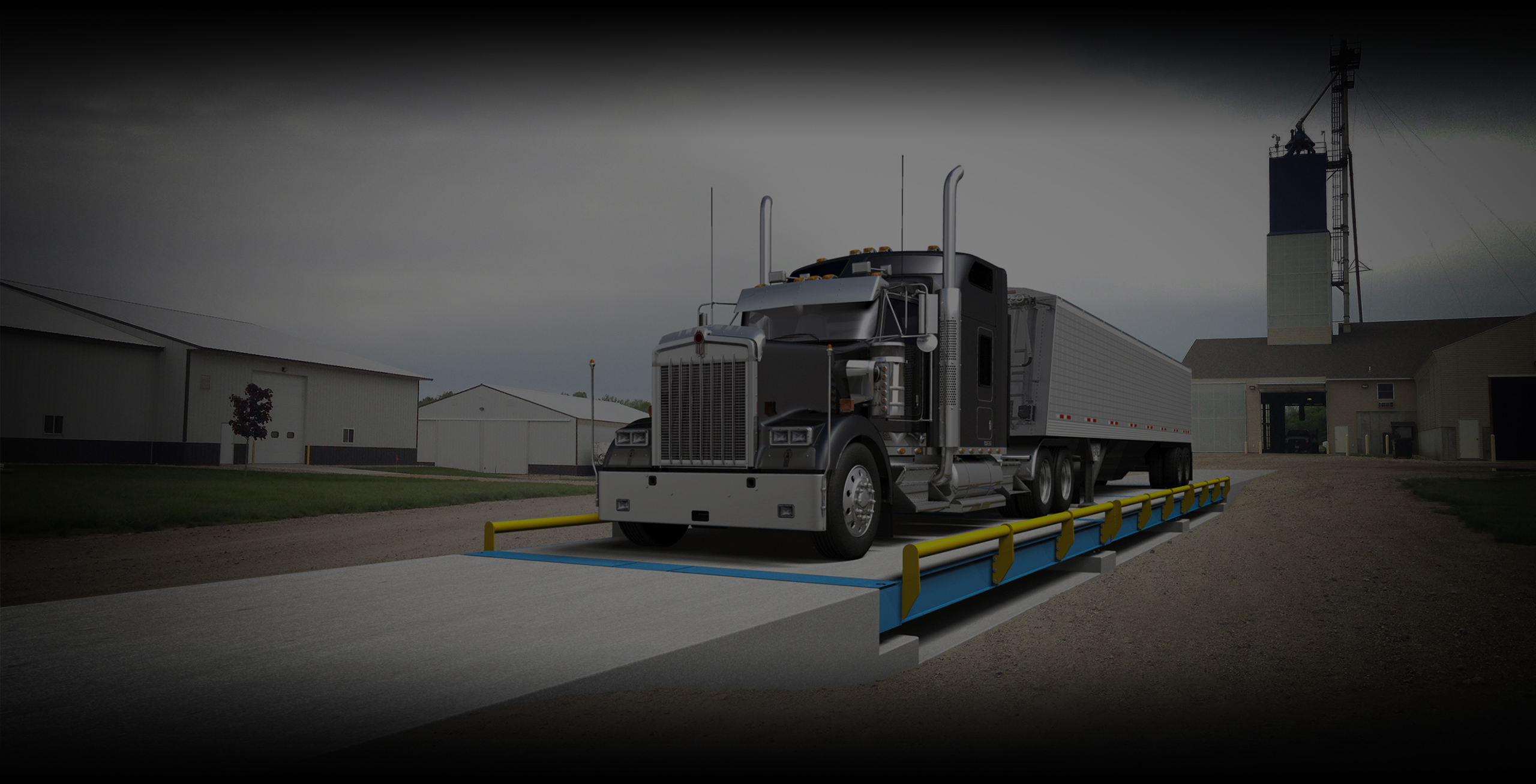

The BMC HD is a heavy-duty, concrete deck truck scale for vehicle weighing that provides a driving surface with improved traction and corrosion resistance.

Concrete deck truck scales typically provide improved traction and are more resistant to corrosion in wet conditions than steel deck truck scales.

This weighbridge has a composite design – only the top half of the deck is poured, allowing the concrete to stay in compression and resist cracking. Tension forces are handled by the high-strength steel structure below the concrete.

Multi-platform axle weighers
All BridgeMont truck scales are also available as a multi-platform system, providing accurate axle weighing plus a legal-for-trade gross weight in a single action. Truck scales that are configured for one-stop axle weighing combine multiple independent scales in a common foundation and are designed to accommodate the vehicle’s axle spacings.

Rugged, reliable weighing
Our vehicle scales utilize the Weigh Bar; an extremely rugged, highly reliable, load-sensing device that is designed to overcome the shortcomings of many competitor load cells.  The unique, patented design provides inherent strength and overload protection, while also providing accuracy and high reliability.

Industry leading warranty
All Avery Weigh-Tronix truck scales/weighbridges come backed by industry-leading warranty options to ensure a low cost-of-ownership.

  • Height —
  • Weighing Increments —
  • Maximum Capacity —
  • Width —
  • Length —
  • Mounting Pit, Surface
  • Legal for Trade Capable Yes
  • Material Steel
  • Weighing Increments 1kg
  • Maximum Capacity 10kg

AWT05-503694

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 12ft
  • Length 25'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503681

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 59' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503682

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 69' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503683

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 74'-10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503684

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 79'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503685

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 92'-9 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503686

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 99'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503687

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 99' 1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503688

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 115' 9"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503689

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 11ft
  • Length 124'-1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503690

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 12ft
  • Length 10'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503691

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 12ft
  • Length 12'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503692

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 12ft
  • Length 20'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503693

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 12ft
  • Length 24'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503680

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 11ft
  • Length 50'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503695

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 12ft
  • Length 29'-7 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503696

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 12ft
  • Length 34'-11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503697

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 12ft
  • Length 40'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503698

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 12ft
  • Length 46' -11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503699

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 12ft
  • Length 50'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503700

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 59' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503701

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 69' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503702

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 74'-10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503703

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 79'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503704

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 92'-9 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503705

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 99'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503706

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 99' 1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503707

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 115' 9"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503708

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 12ft
  • Length 124'-1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503665

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 79'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503652

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 10ft
  • Length 10'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503653

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 10ft
  • Length 12'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 1/4" Steel Deck
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503654

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 10ft
  • Length 20'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503655

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 10ft
  • Length 24'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503656

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 10ft
  • Length 25'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503657

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 10ft
  • Length 29'-7 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503658

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 10ft
  • Length 34'-11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503659

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 10ft
  • Length 40'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503660

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 10ft
  • Length 46' -11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503661

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 10ft
  • Length 50'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503662

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 59' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503663

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 69' -10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503664

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 74'-10 1/2"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503679

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 11ft
  • Length 46'-11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503666

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 92'-9 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503667

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 99'-5 3/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503668

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 99'-1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503669

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 115'-9"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503670

  • Height —
  • Weighing Increments 27lb
  • Maximum Capacity 270000lb
  • Width 10ft
  • Length 124'-1"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 13.5kg
  • Maximum Capacity 135000kg

AWT05-503671

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 11ft
  • Length 10'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503672

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 11ft
  • Length 12'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503673

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 11ft
  • Length 20'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503674

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 11ft
  • Length 24'-0"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503675

  • Height —
  • Weighing Increments 9lb
  • Maximum Capacity 90000lb
  • Width 11ft
  • Length 25'-8"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 4.5kg
  • Maximum Capacity 45000kg

AWT05-503676

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 11ft
  • Length 29'-7 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503677

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 11ft
  • Length 34'-11 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

AWT05-503678

  • Height —
  • Weighing Increments 18lb
  • Maximum Capacity 180000lb
  • Width 11ft
  • Length 40'-3 1/4"ft
  • Mounting Surface
  • Legal for Trade Capable Yes
  • Material 5" Concrete
  • Weighing Increments 9kg
  • Maximum Capacity 90000kg

Related resources

BMC HD Technical Specification – EN Download
Truck Scale Product Brochure – EN Download

Find a weighing equipment supplier near me

We work with a network of reliable and trusted distribution partners to ensure that we can offer a truly personal, local service, wherever you’re located.
Find out more
