With 150% overload protection, powder coated tubular base frames constructed of mild steel. Also, with four corner stops the load cell are well-protected.

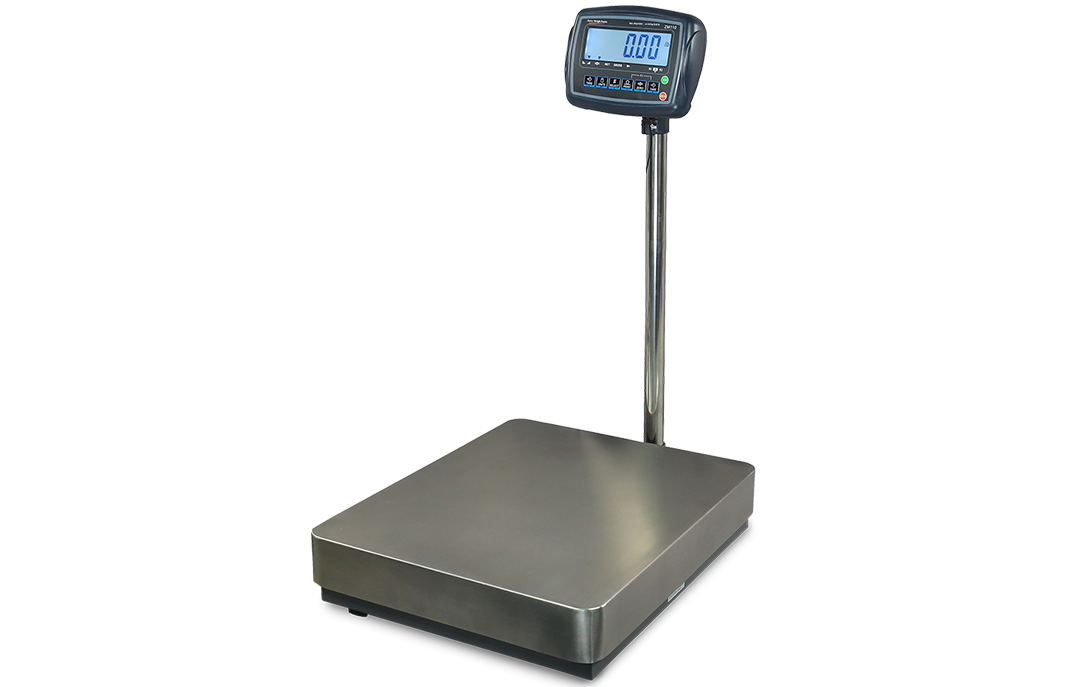

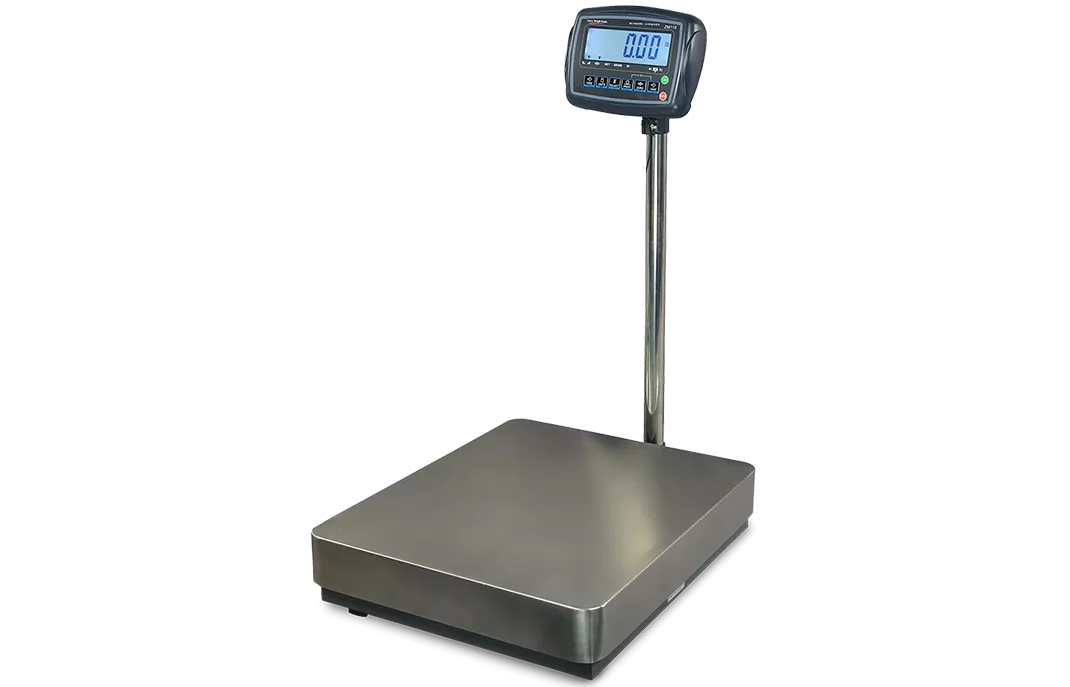

ZM110 Digital Bench Scale
Ideal for a wide range of general purpose floor or bench base type applications.
Overview
The ZM110 Digital Bench Scale is a battery operated bench and indicator system that offers general/animal (Hold) weighing, checkweighing and check counting with an easy-to-use interface. The ZM110 can be supplied as a trade approved bench scale system at 3,000 divisions as well as 6,000 divisions for applications where trade approval is not required. As a system, the base combines with a pole-mounted indicator that can be used for a wide range of general purpose floor or bench base type applications.
Can be supplied as a trade approved bench scale system at 3,000 divisions as well as 6,000 divisions for applications where trade approval is not required.
ZM110 Digital Bench Scale features
The base frame is fitted with four large, lockable, adjustable anti-slip feet. In fact, they are ideal for leveling the base if positioned on uneven ground.
Additionally, this base is fitted with a robust, R60 C3 approved, aluminum IP66 load cell.
The base is also fully covered with a removable, hard-wearing, food grade 304 stainless steel top pan.
The ABS housed Avery Weigh-Tronix ZM110 Indicator has a large, easy-to-read 50 mm x 165 mm LCD backlit display with 40 mm high digits.
The built-in battery allows this product to be used in low lit areas or in areas with scarce power outlets. In fact, the ZM110 can provide over 107 hours of battery life between charges.
AWT05-509352
-
ATEX No
-
ATEX Zones —
-
Length 40cm
-
Power Source —
-
Height 90.3cm
-
Width 40cm
-
Indicator Type Pole Mounted Indicator
-
Legal for Trade Capable Yes
-
IP Rating Ip66**
-
Material 304 Brushed Stainless Steel Top Pan
-
Maximum Capacity 60kg
AWT05-509353
-
ATEX No
-
ATEX Zones —
-
Length 40cm
-
Power Source —
-
Height 90.3cm
-
Width 50cm
-
Indicator Type Pole Mounted Indicator
-
Legal for Trade Capable Yes
-
IP Rating Ip66**
-
Material 304 Brushed Stainless Steel Top Pan
-
Maximum Capacity 150kg
AWT05-509354
-
ATEX No
-
ATEX Zones —
-
Length 50cm
-
Power Source —
-
Height 90.3cm
-
Width 60cm
-
Indicator Type None
-
Legal for Trade Capable Yes
-
IP Rating Ip66**
-
Material —
-
Maximum Capacity 300kg
AWT05-509376
-
ATEX No
-
ATEX Zones —
-
Length 40cm
-
Power Source —
-
Height 90.3cm
-
Width 50cm
-
Indicator Type None
-
Legal for Trade Capable Yes
-
IP Rating Ip66**
-
Material —
-
Maximum Capacity 300kg
-
-
—
