The ZT Digital Load Cell is connected by a network of interlocking cables without the use of a junction box or hand wiring.

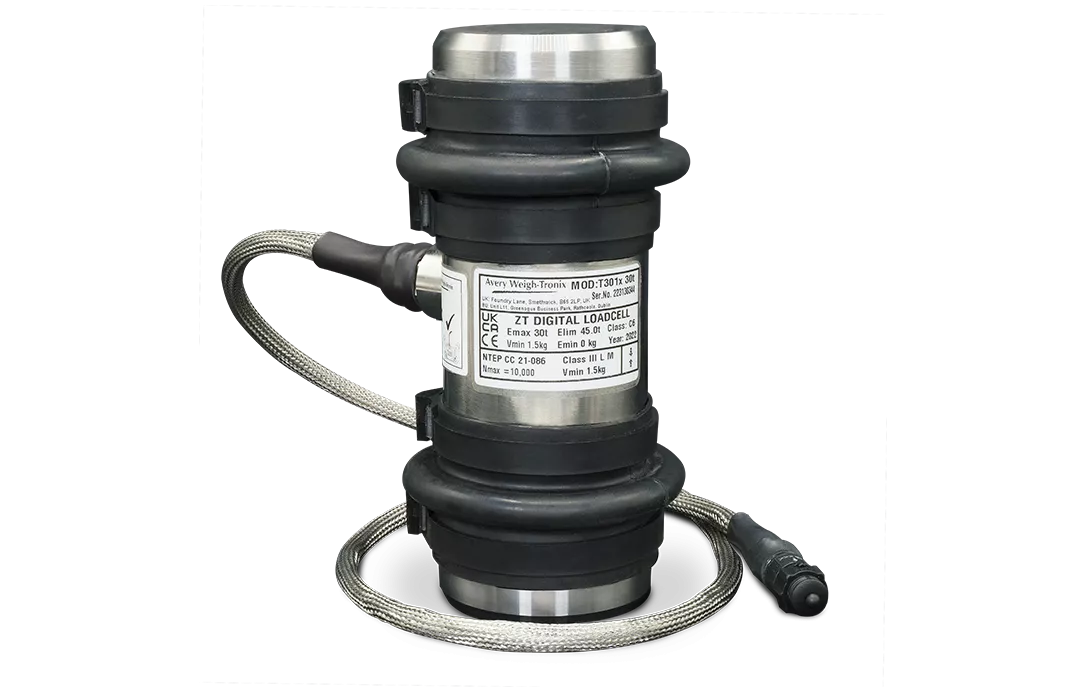

ZT Digital Load Cell
The Right Choice for your Truck, Multi-Scale and Hopper Weighing.
Overview
The Right Choice for your Truck, Multi-Scale and Hopper Weighing.
With a proven track record of manufacturing canister load cells to the highest industry and quality standards, Avery Weigh-Tronix’s latest ZT Digital Load Cell uses the latest state-of-the-art load cell manufacturing and testing equipment. Avery Weigh-Tronix load cells are designed to stand the test of time, even in the harshest of environments. Compatible with our ZM510 and ZM615 indicators using Amphenol LTW® connectors, making diagnostics a breeze.
Features
- 30,000 kg and 45,000 kg capacities
- Fully submersible, hermetically sealed to IP68
- Integral Lightning Protection (Class 4, certified)
- Stainless Steel Construction
- NTEP and C6 OIML Trade Approved
- Smart and Secure Digital Protocol
- No junction box needed
Real time diagnostics monitors the system and will notify the user of any errors to resolve issues quickly.
Each ZT Digital Load Cell is supplied as standard pre-calibrated, linearized, temperature compensated and with factory assembled pre-greased load buttons.
The ZT load buttons and load bearing element have been designed with a dual pin system to eliminate cell rotation.
ZT Digital Secure protocol means the signals from each ZT Digital Load Cell cannot be tampered with unlike analog cells.
Each ZT Digital Load Cell has 6,000,000 internal divisions at rated capacity.
WEBZTLC30000
-
Height 7.87in
-
Weighing Increments 6.6lb
-
Maximum Capacity (lb) 66000lb
-
Load Cell Type Digital Compression
-
Maximum Capacity (kg) 30000kg
-
Material 304 Stainless Steel
-
Weighing Increments 3kg
-
-
—
