- Static or in-motion vehicle weighing
- Comprises of a wireless indicator, 2x scales with roll-up ramps
- Dynamic operating speed of up to 6mph
- Up to 200 hours battery life
- All-weather indicator case with integrated thermal printer
- 144mm LCD display
- Store up to 1,500 weigh records
- Wheel weights, axle weights, gross vehicle weight, axle spacing and vehicle speed can be printed onto a ticket
Overview

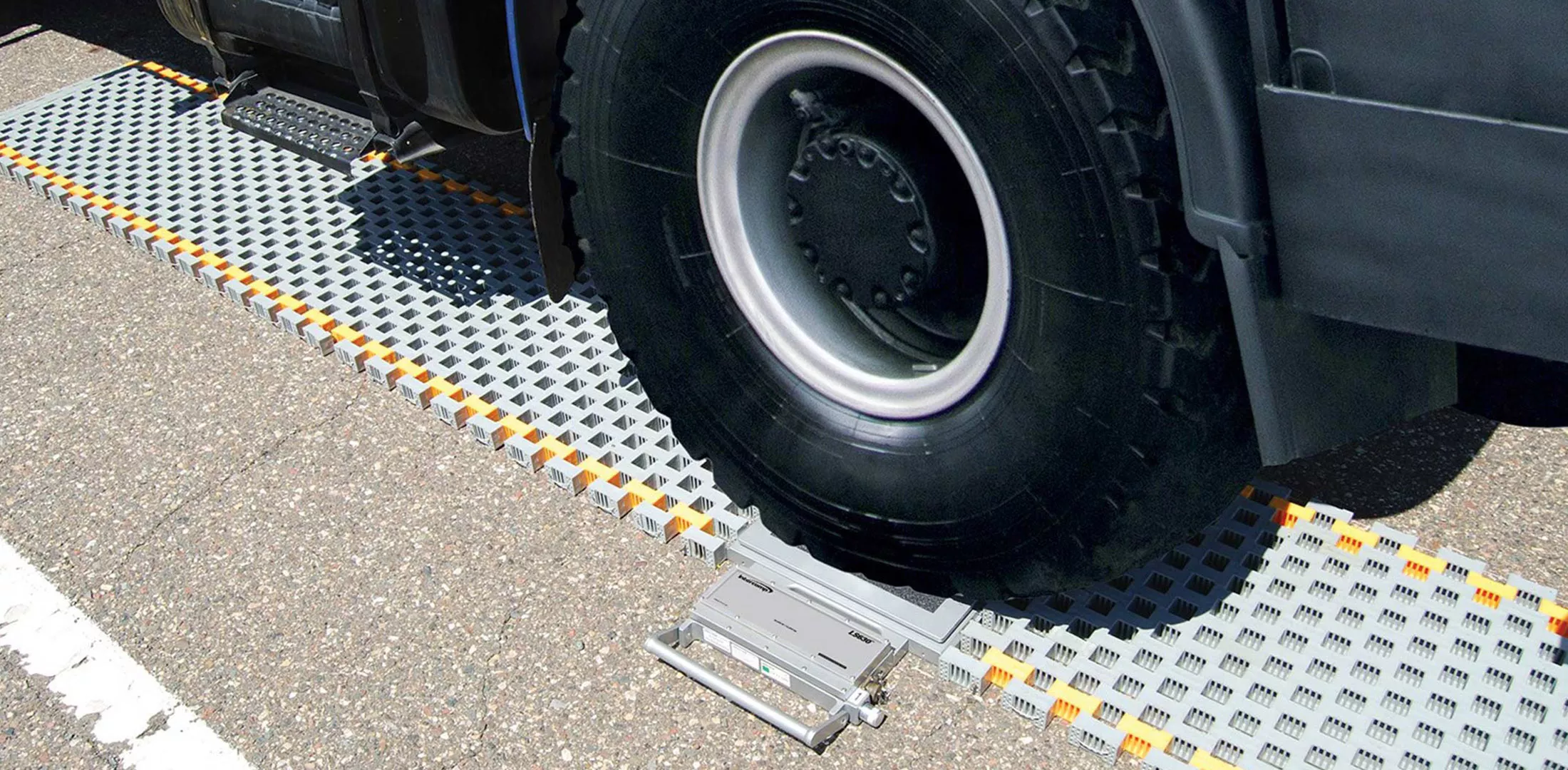

The LS630 weigh-in-motion axle weighers provide a portable weighing solution that dynamically or statically reports axle and gross vehicle weight.

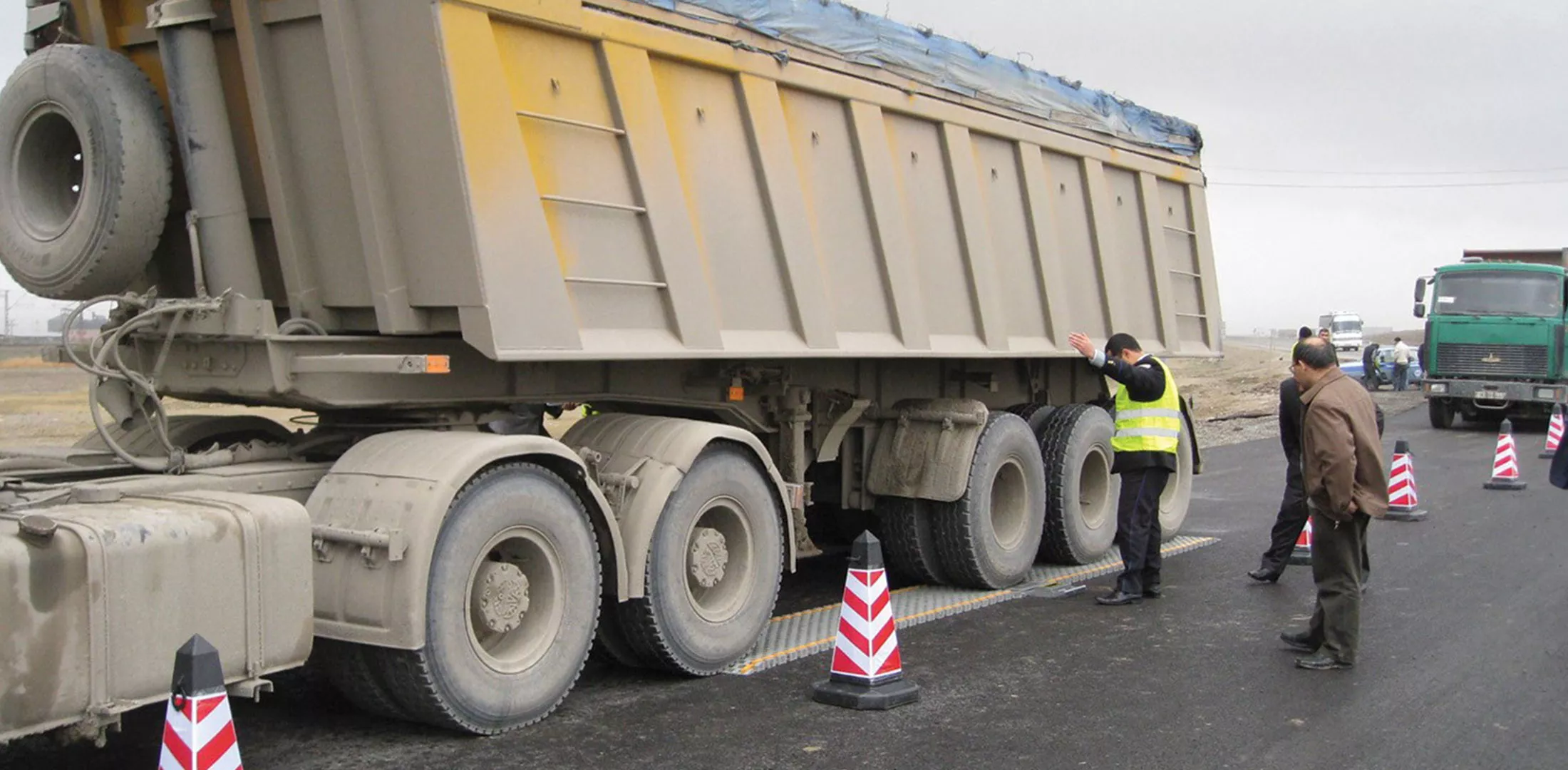

Portable weigh-in-motion allows authorities or fleet operators to quickly monitor, screen vehicle gross or axle loads where a permanent weigher is not available. Consisting of a wireless indicator, two scales and rollup ramps, the system is fully portable in the boot of an estate vehicle and can be set up by 1 or 2 people in under 15 minutes.
Each LS630 Portable Axle Weigher features:
Dynamic Pads
PT20 Indicator
Operating Speed (dynamic mode): 1-6 mph
Dynamic Accuracy (GVW): 2-3% at 3 mph
Static Accuracy: +/-0.5% of verified gross weight or 1 display graduation, whichever is greater
Calibration Interval: 6-12 months
IP Rating: IP67
Operating Temperature: -10°C to +40 °C (+14°F to +104°F)
Capacity: 15,000 kg x 20 kg per pad / 30,000 kg
Dimensions (weighing area): 380mm x 780mm
Dimensions (overall): 405mm x 1025mm
Weight: 31 kg
Batteries: 4 alkaline ‘AA’ cells
Battery Life: 50 hours (typical)
Standby Mode: Yes
Controls
Keys: 41 control keys
Display: 145 mm (5.7”) graphic LCD with backlightPower
Batteries: – 6 ‘D’ cell alkaline or NiMH rechargeable cells
Battery Life: 40 to 200 hours (dependent on system detail, printer, and back light use)
Auto shut off / Low battery alert: Yes
Time/Date battery: (1) CR2032 Lithium button cellOutputs
Output: USB, RS485/ANALOG, and USB Flash Drive
Relay Output: 2 outputs, each with C/NO/NC contacts, 5A @ 250VAC or 30VDC
Analog Output: (16-bit): 0-10V, 4-20mA, 0-5V, +/-5V, +/-10V, 0-20mAData Storage
Capacity: Up to 1500 weigh records
Data Recall: All stored records can be recalled to view or print
Data Export: All records can be exported via USB, RS232, or USB flash drive
Casing: Hardened case rated IP67 when closed, IP52 when opened and operational.
Temperature: Operating -20C to 60C (printer 0C to 50C)
Radio Frequency: ISM 2.4GHz, 802.15.4 DSSS*
License Requirements: None. Preapproved US/FCC, CAN/IC, EUR/CE
Range: 150′ / 45m line of sight, reduced with obstructions.
