T301X Digital Load Cell

Designed for weighbridge & hopper weighing

Overview

The T301x is a high capacity, highly accurate digital load cell suitable for use in weighbridge and hopper weighing applications in extreme environments.

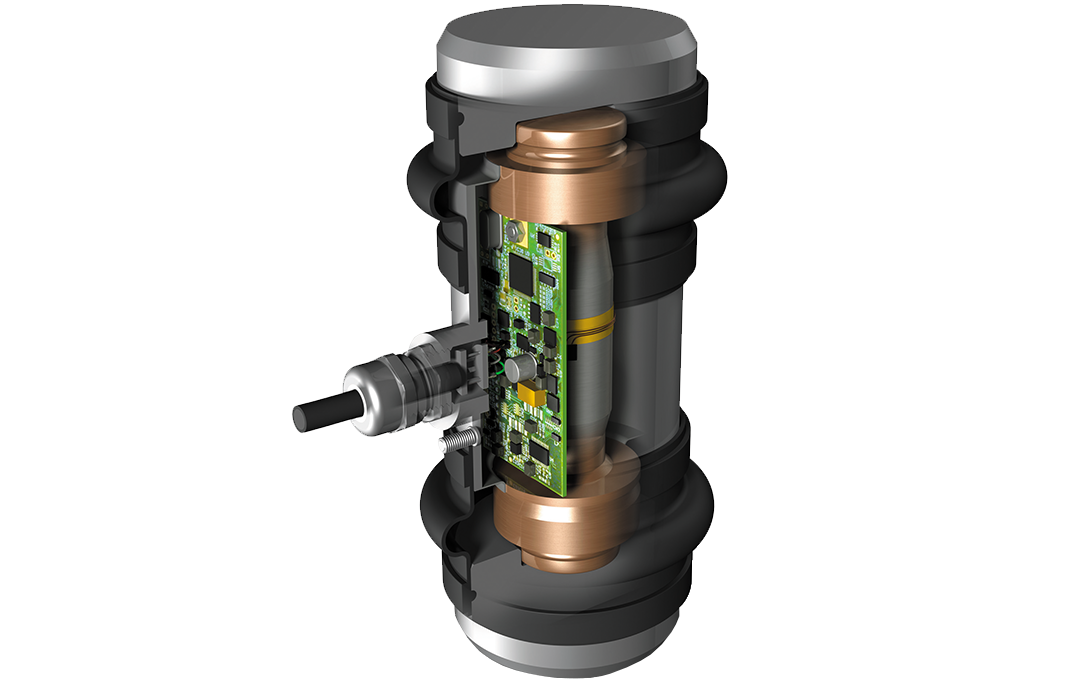

The T301x load cell features all stainless-steel construction. The weighing element being manufactured from a solid piece of aircraft-quality stainless steel alloy. Highly accurate weight readings even in the toughest environmental conditions, using eight load-measuring gauges to guarantee consistently high accuracy, even when the load cell is operating at 3 degrees off centre.

Each T301X Load Cell Features:

It is hermetically sealed to IP69k, making it ideal for use in food and quarry applications, or monsoon regions where flooding is common.

  • Compact design
  • Robust and quality assured
  • Sealed to IP69K
  • Lightning protection built-in
  • Accurate to 6,000d
  • 100% statinless steel construction
  • RS485 communication
  • Factory calibrated
  • 25m cable
  • Legal for trade
  • The top and bottom load buttons are fully gaitered and pre-greased to help reduce wear from dust and moisture.

WEBT301X30000

  • Load Cell Type Digital Compression
  • Length 20cm
  • Height 9.7cm
  • Width 9.7cm
  • IP Rating Ip69K
  • Material 304 Stainless Steel
  • Weighing Increments 1kg
  • Maximum Capacity 30000kg

WEBT301X45000

  • Load Cell Type Digital Compression
  • Length 20cm
  • Height 12cm
  • Width 12cm
  • IP Rating Ip69K
  • Material 304 Stainless Steel
  • Weighing Increments 2kg
  • Maximum Capacity 45000kg

Related resources

T300 Series Load Cell Product Brochure – EN Download
