DEBWB Double Ended Batching Weigh Bars
Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales.
Overview
Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption to your operations.

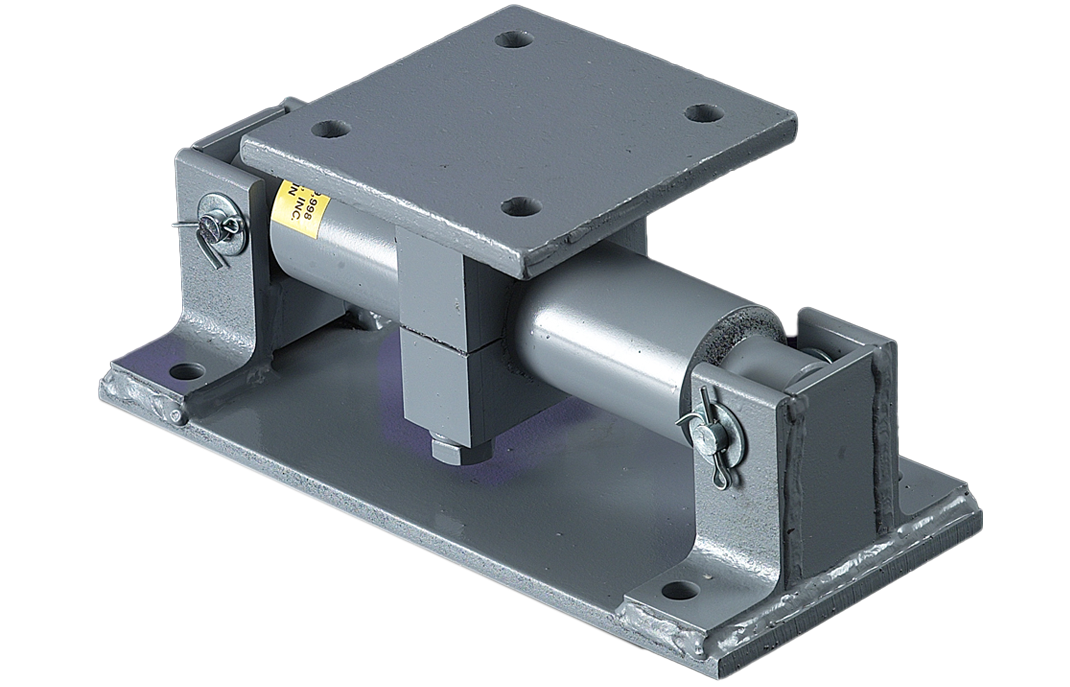

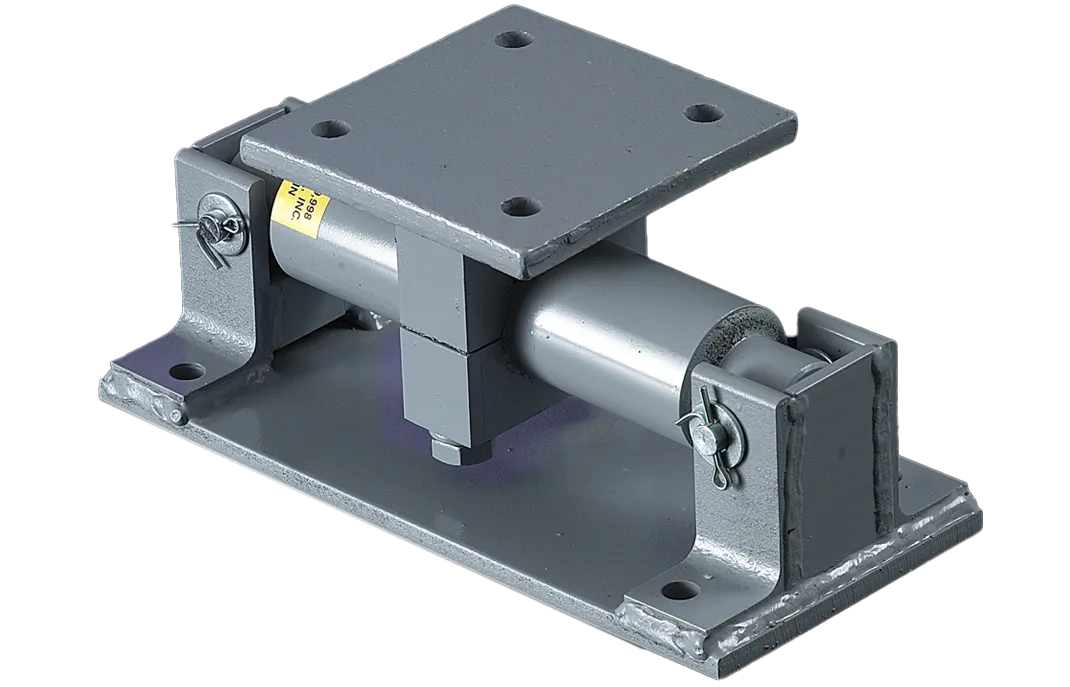

The DEBWB is a 350 ohm, full bridge, double ended batching Weigh Bar mounted in a bracket assembly.
Corrosion protection, mild steel weigh bar available in a range of capacities
The DEBWB is made of mild steel finished with epoxy paint for corrosion protection.
They are available in kits with capacities from 750 lbs to 400,000 lbs. It is not approved for trade by weight and comes with a 0.25% accuracy rating.
Ideal for food and chemical weighing applications
The DEBWB features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem.
The chain link assemblies are also fully washdown protected, for food and chemical applications.
13586-0021MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 4kg
-
Maximum Capacity 20000kg
17203-0033MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 0.4kg
-
Maximum Capacity 2000kg
17203-0058MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 0.8kg
-
Maximum Capacity 4000kg
17203-0074MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 1kg
-
Maximum Capacity 5000kg
17203-0090MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 1.6kg
-
Maximum Capacity 8000kg
17203-0116MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 2kg
-
Maximum Capacity 10000kg
18395-0039MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 0.1kg
-
Maximum Capacity 500kg
18545-0038MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 0.2kg
-
Maximum Capacity 1000kg
18580-0018MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 6kg
-
Maximum Capacity 30000kg
18613-0019MTS
-
Load Cell Type Bending Weigh Bar
-
Length 12cm
-
Height 12cm
-
Width 12cm
-
IP Rating Ip67**
-
Material Mild Steel
-
Weighing Increments 8kg
-
Maximum Capacity 40000kg
-
-
—
