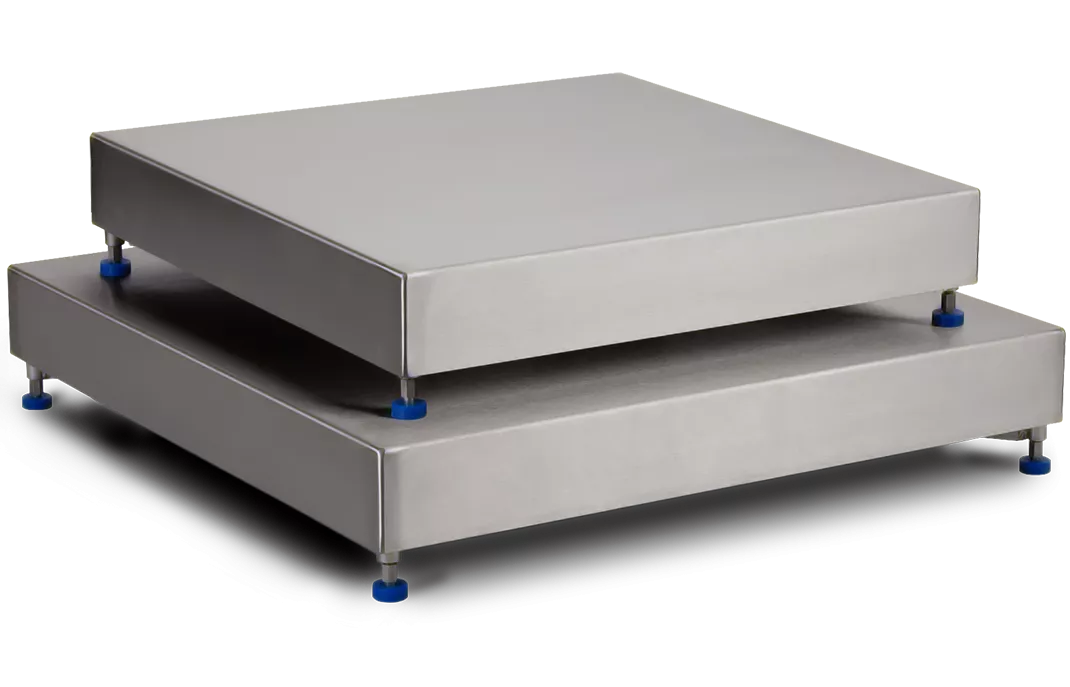

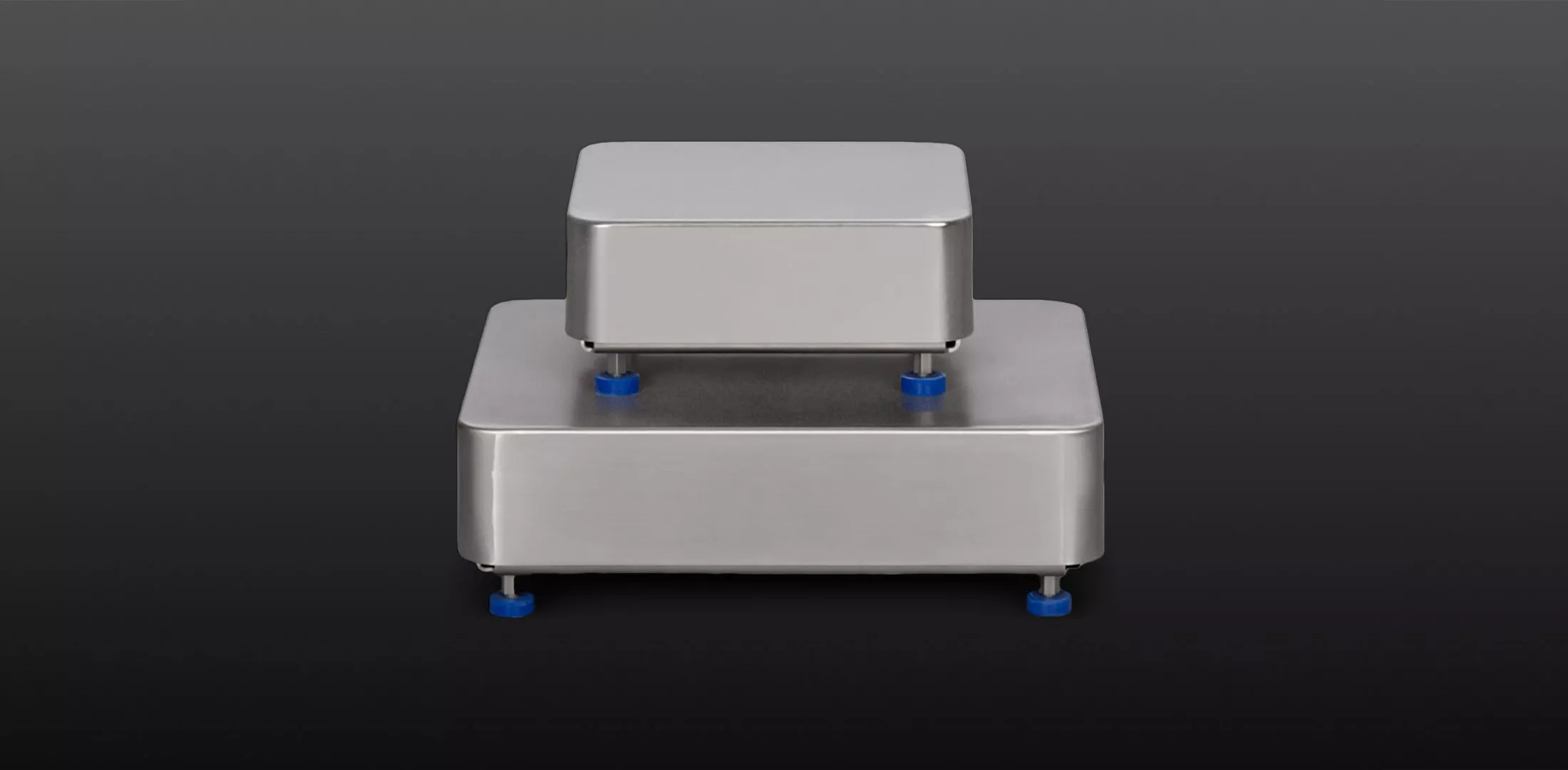

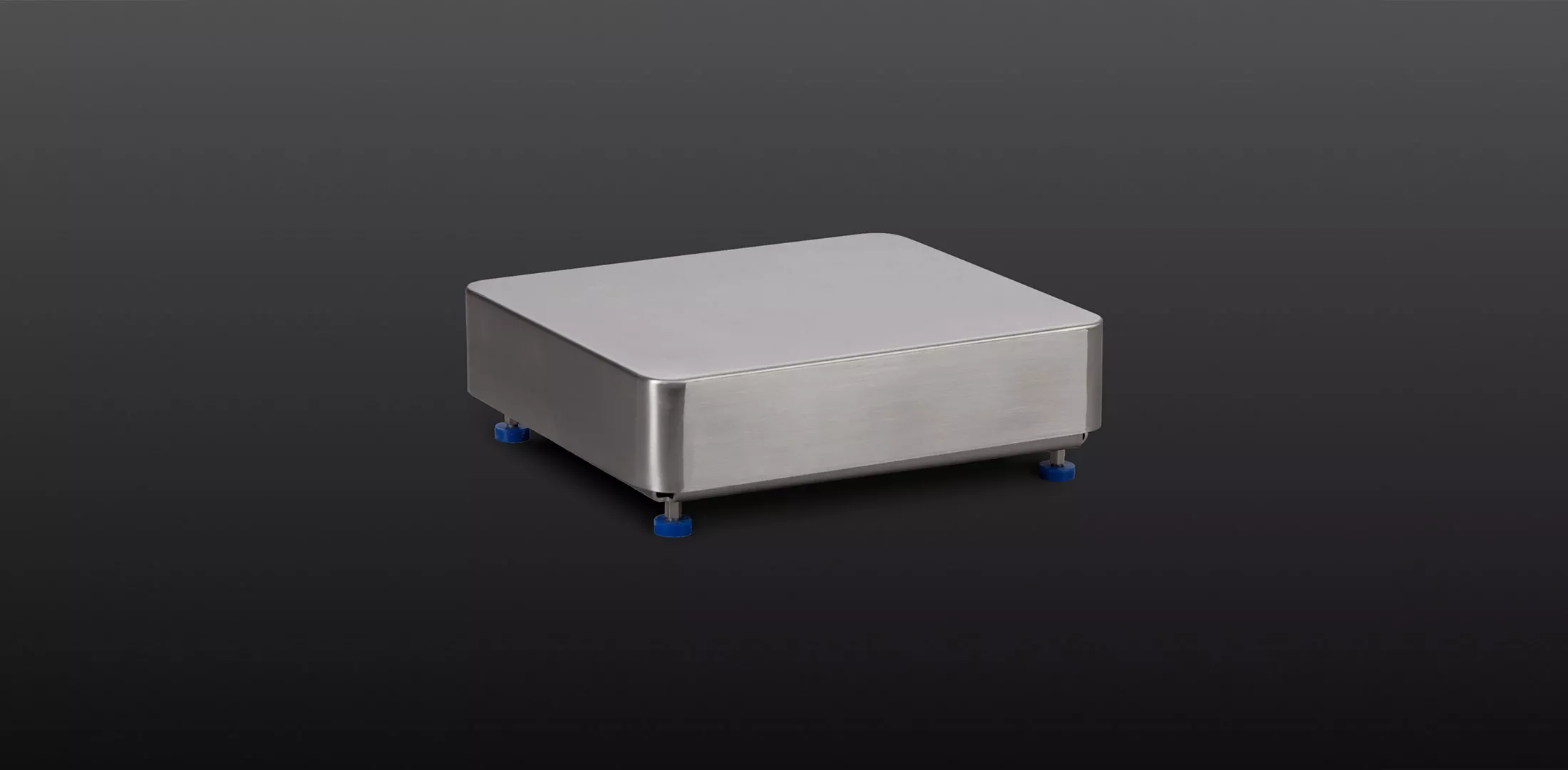

BSG Torsion Bench Scale Base

3000d legal for trade Single loadcell torsion bench base. Robust, accurate & very reliable, 500% shock load protection available in food grade stainless steel, NSF approved for food areas, IP69K easy to clean. Ideal for warehouse or food manufacture, normally combined with an Avery Weigh-Tronix Indicator



Overview

Certified by NSF to NSF/ANSI Standard 3-A, the torsion base BSF and BSG are ideal bench bases for use within all types of food environment. These fully stainless steel bench scale bases are IP69K washdown and corrosion resistant, making them ideal for food and food processing industries.



BSG Torsion Bench Scale Base features

The Torsion bench scale bases can stand the abuse of a busy industrial environment with minimal maintenance. Their 500% overload protection and breakaway load transfer system, which protects the weight sensor, makes these bench scale bases inherently tough and dependable.

The Torsion bench scale bases are particularly rugged by design – engineered to resist overloading and sudden dropped loads.

Designed to remain accurate and reliable at all times, the BSG is 3000 division NTEP & EC approved. It comes in a range of sizes from 210mm x 210mm to 250mm x 310mm (9″ x 9″ to 12″ x 14″) and cover a capacity range from 3kg to 30kg.

AWT05-100525

  • ATEX No
  • ATEX Zones
  • Length 8.75cm
  • Power Source
  • Height 9.4cm
  • Width 22cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 5kg

AWT05-100526

  • ATEX No
  • ATEX Zones
  • Length 12cm
  • Power Source
  • Height 11cm
  • Width 30cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 50kg

AWT05-800037

  • ATEX No
  • ATEX Zones
  • Length 8.75cm
  • Power Source
  • Height 9.4cm
  • Width 22cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 5kg

AWT05-800039

  • ATEX No
  • ATEX Zones
  • Length 12cm
  • Power Source
  • Height 11cm
  • Width 30cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 12.5kg

AWT05-800045

  • ATEX No
  • ATEX Zones
  • Length 8.75cm
  • Power Source
  • Height 9.4cm
  • Width 22cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 2.5kg

AWT05-800047

  • ATEX No
  • ATEX Zones
  • Length 12cm
  • Power Source
  • Height 11cm
  • Width 30cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 25kg

AWT05-800048

  • ATEX No
  • ATEX Zones
  • Length 12cm
  • Power Source
  • Height 11cm
  • Width 30cm
  • Indicator Type
  • Legal for Trade Capable Yes
  • IP Rating Ip69K
  • Material 304 Brushed Stainless Steel
  • Maximum Capacity 50kg

Related resources

BSG Bench Base FAQ – EN Download
NSF & EHEDG – Hygiene Product Ratings Explained Download
Torsion BSF/BSG Product Specifications – EN Download
Torsion BSG Product Specifications – EN Download
