- 30 and 45 tonne capacities
- Smart and secure Digital Protocol
- Fully submersible, hermetically sealed to IP69K
- 100% stainless steel construction
- Self-aligning, rocker column design
- Pre-assembled, anti-rotation load buttons
- Integral lightning protection (Level 4, certified)
- Legal for Trade, NTEP and OIML R60 approved
- Accuracy class C6 – 6,000 division
- No Junction box

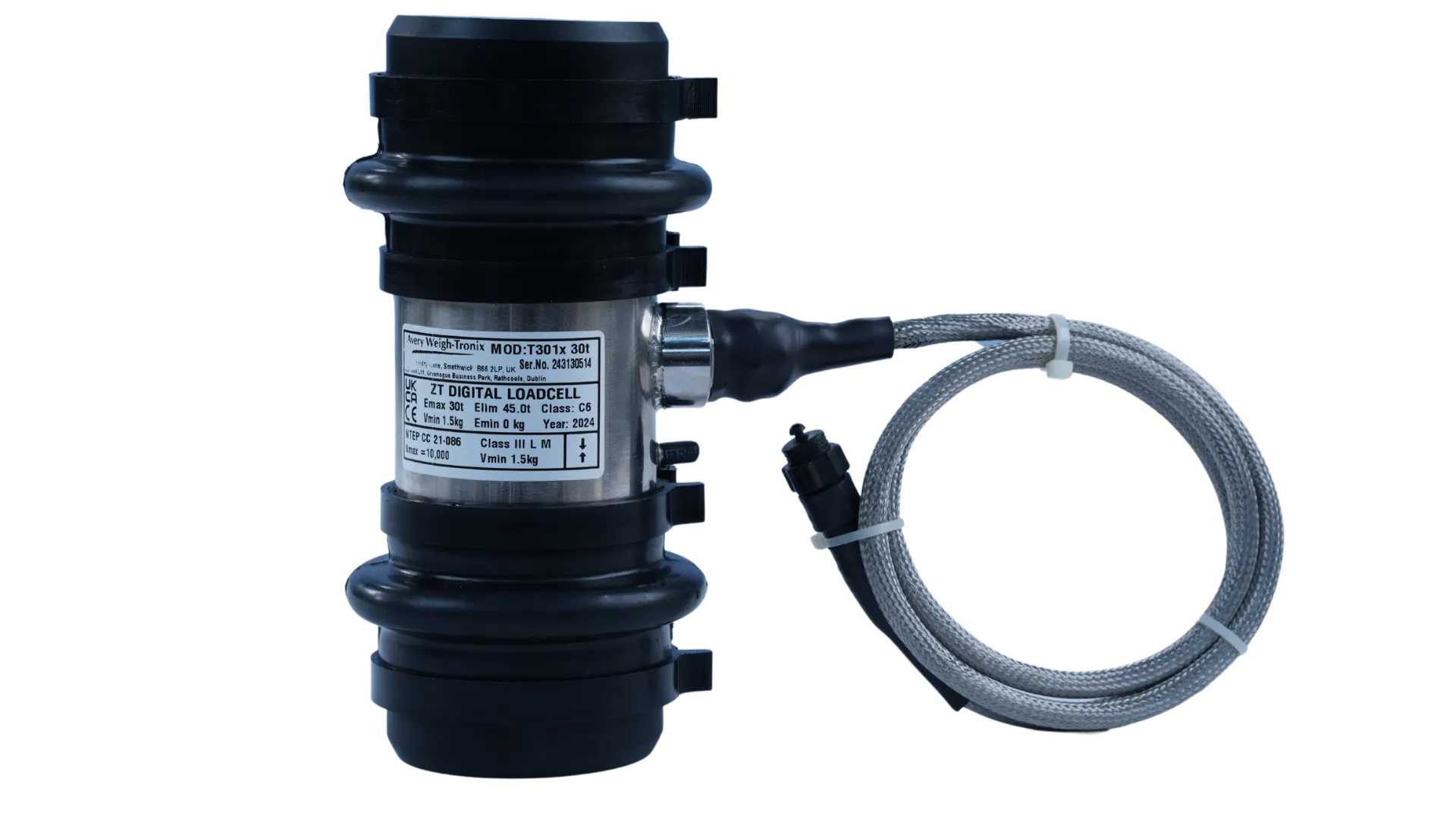

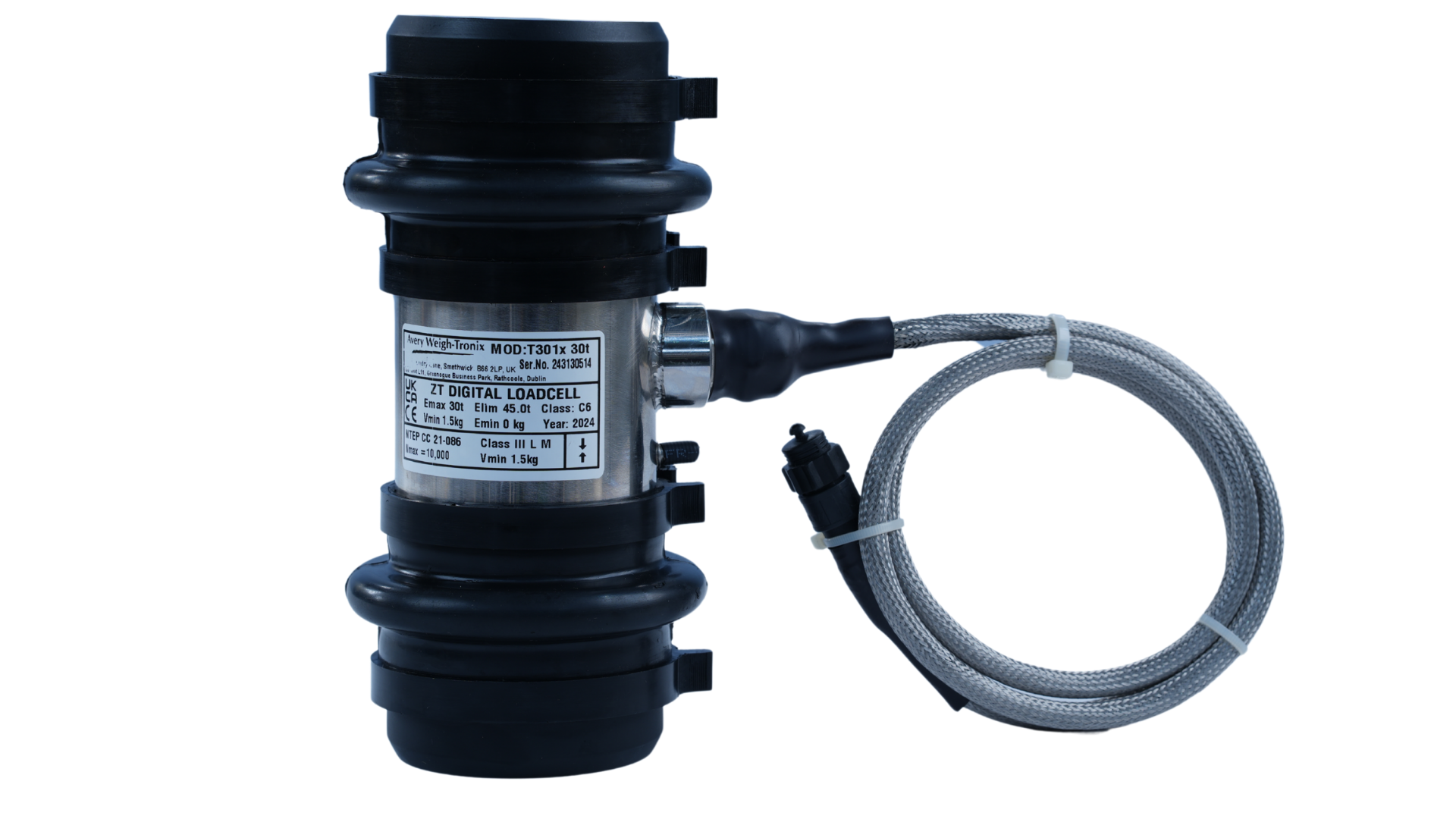

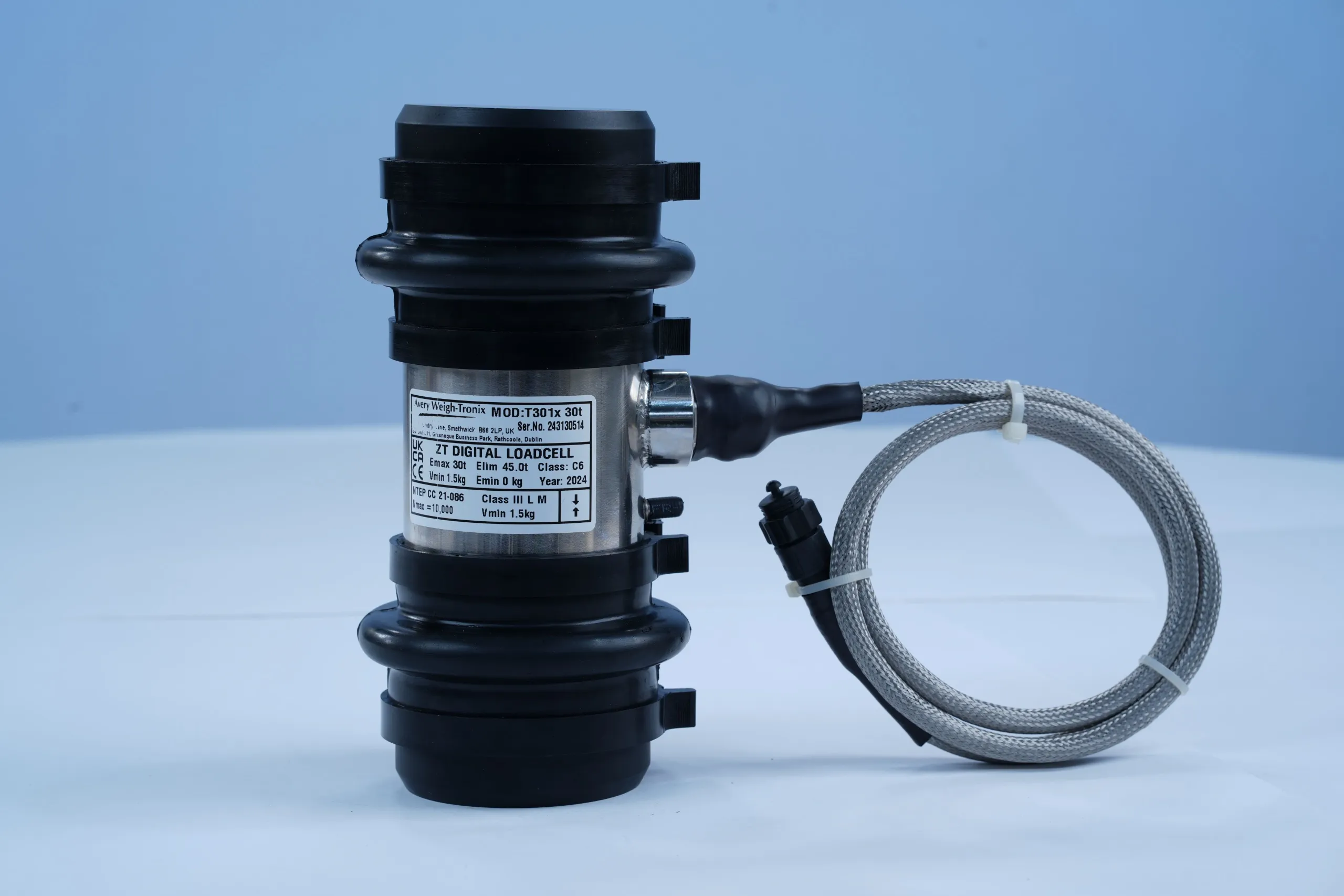

ZT Digital Load Cells
The Right Choice for your Truck, Multi-Scale and Hopper Weighing.
Overview
The Right Choice for your Truck, Multi-Scale and Hopper Weighing.
With a proven track record of manufacturing canister load cells to the highest industry and quality standards, Avery Weigh-Tronix latest ZT Digital Load Cell uses the latest state-of-the-art load cell manufacturing and testing equipment. Avery Weigh-Tronix load cells are designed to stand the test of time, even in the harshest of environments.
Features:
The ZT digital load cell is connected by a network of interlocking cables without the use of a junction box or hand wiring.
Real time diagnostics monitors the system and will notify the user of any errors to resolve issues quickly.
Each ZT digital load cell is supplied as standard pre-calibrated, linearised and temperature compensated and with factory assembled pre-greased load buttons.
The ZT load buttons and load bearing element have been designed to reduce friction which is a cause of rotation.
ZT Digital Secure protocol means the signals from each ZT load cell cannot be tampered with unlike analogue cells.
Each ZT digital load cell has 6,000,000 internal divisions at rated capacity, OIML Accuracy Class C6 giving increased weighing resolutions.
WEBZTLC30000
-
Load Cell Type Digital Compression
-
Length 9.7cm
-
Height 20cm
-
Width 9.7cm
-
IP Rating Ip68
-
Material 304 Stainless Steel
-
Weighing Increments 49kg
-
Maximum Capacity 30000kg
-
-
—
