Streamline Bolt-On Train Weighing System

Cost effective bolt-on transducer train weighing system, for fast installation. No need to cut or weld rails.



You are here: Home » Products » Streamline Bolt-On Train Weighing System

Overview

Cost effective bolt-on transducer train weighing system, for fast installation. No need to cut or weld rails.

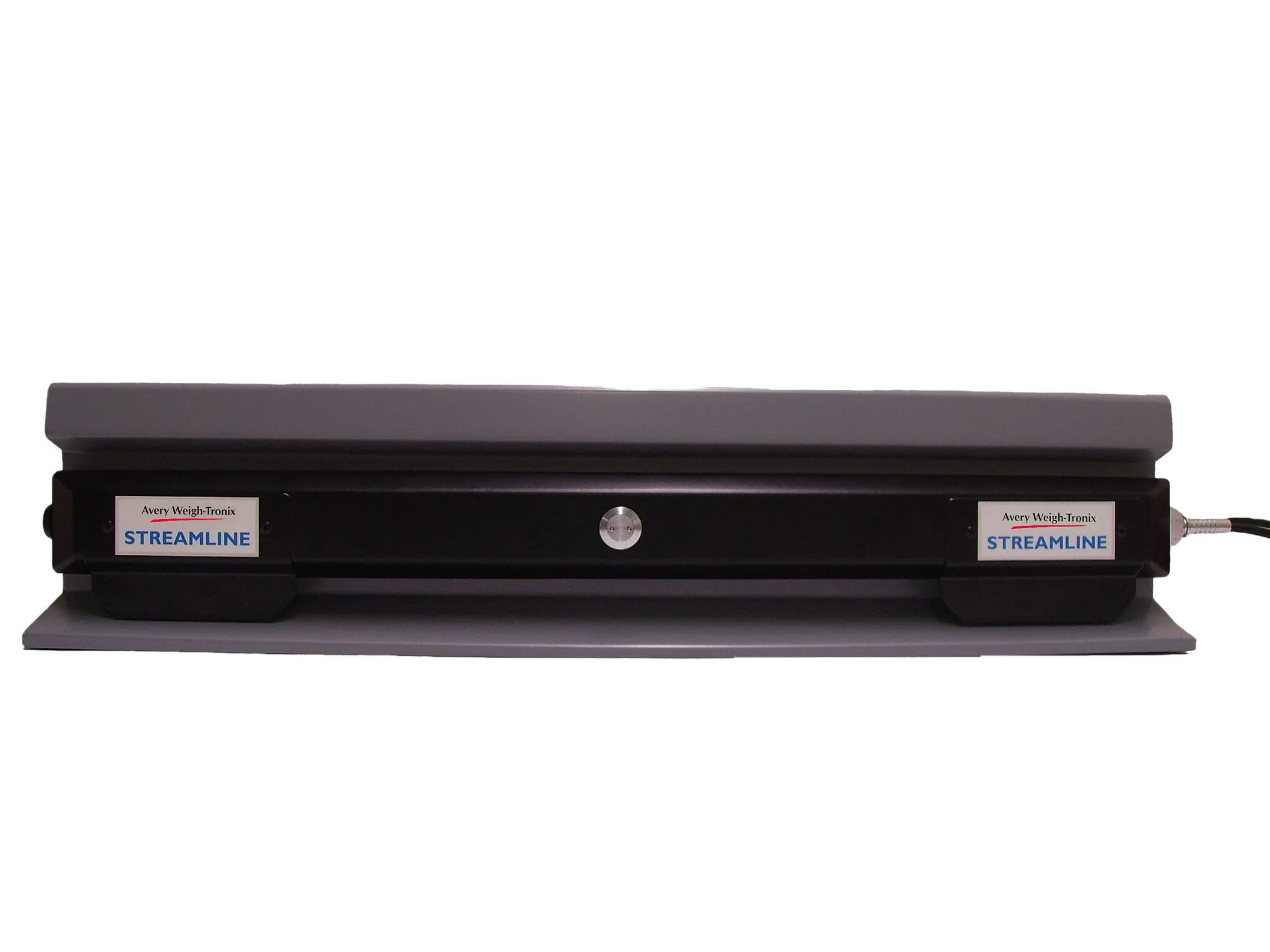

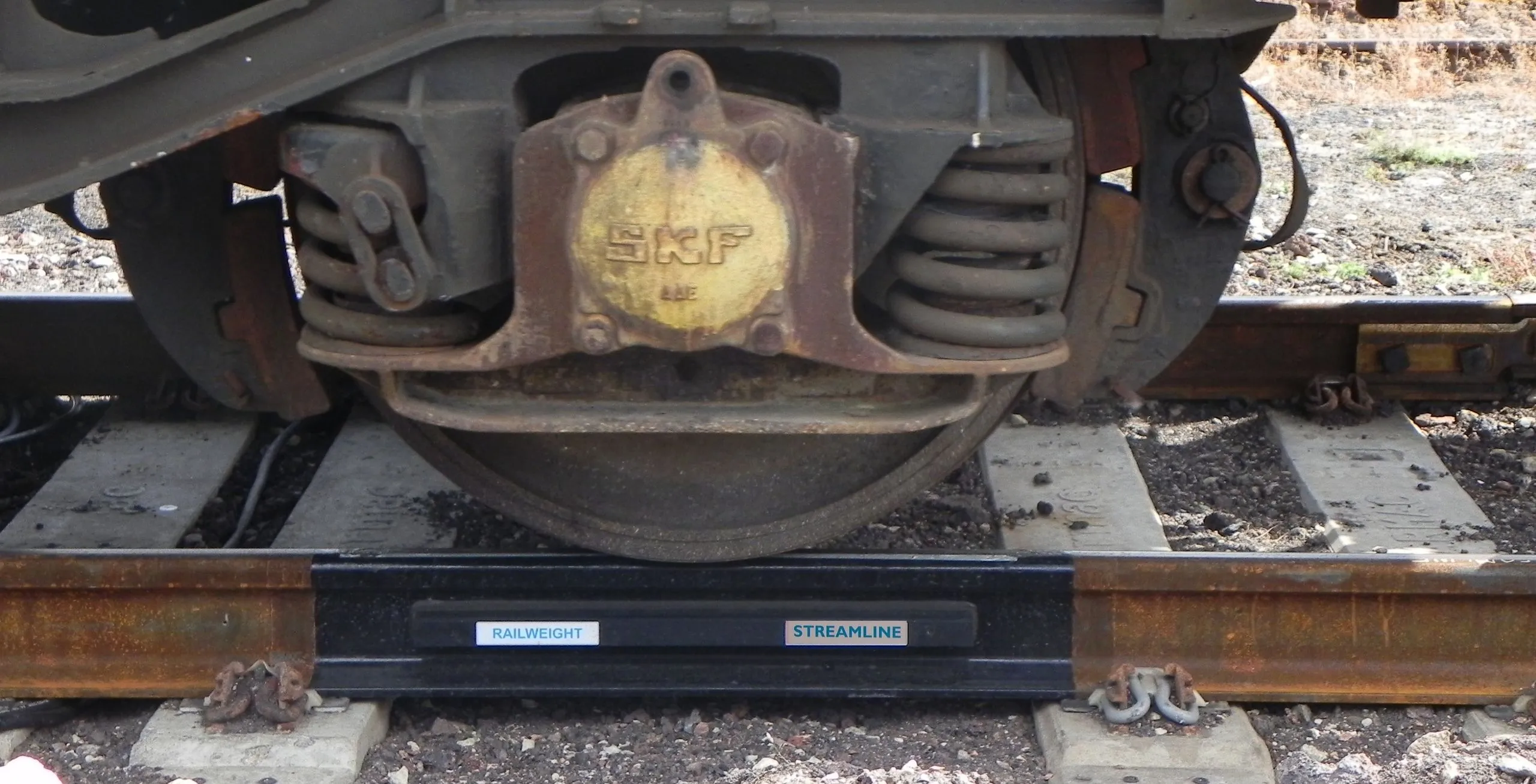

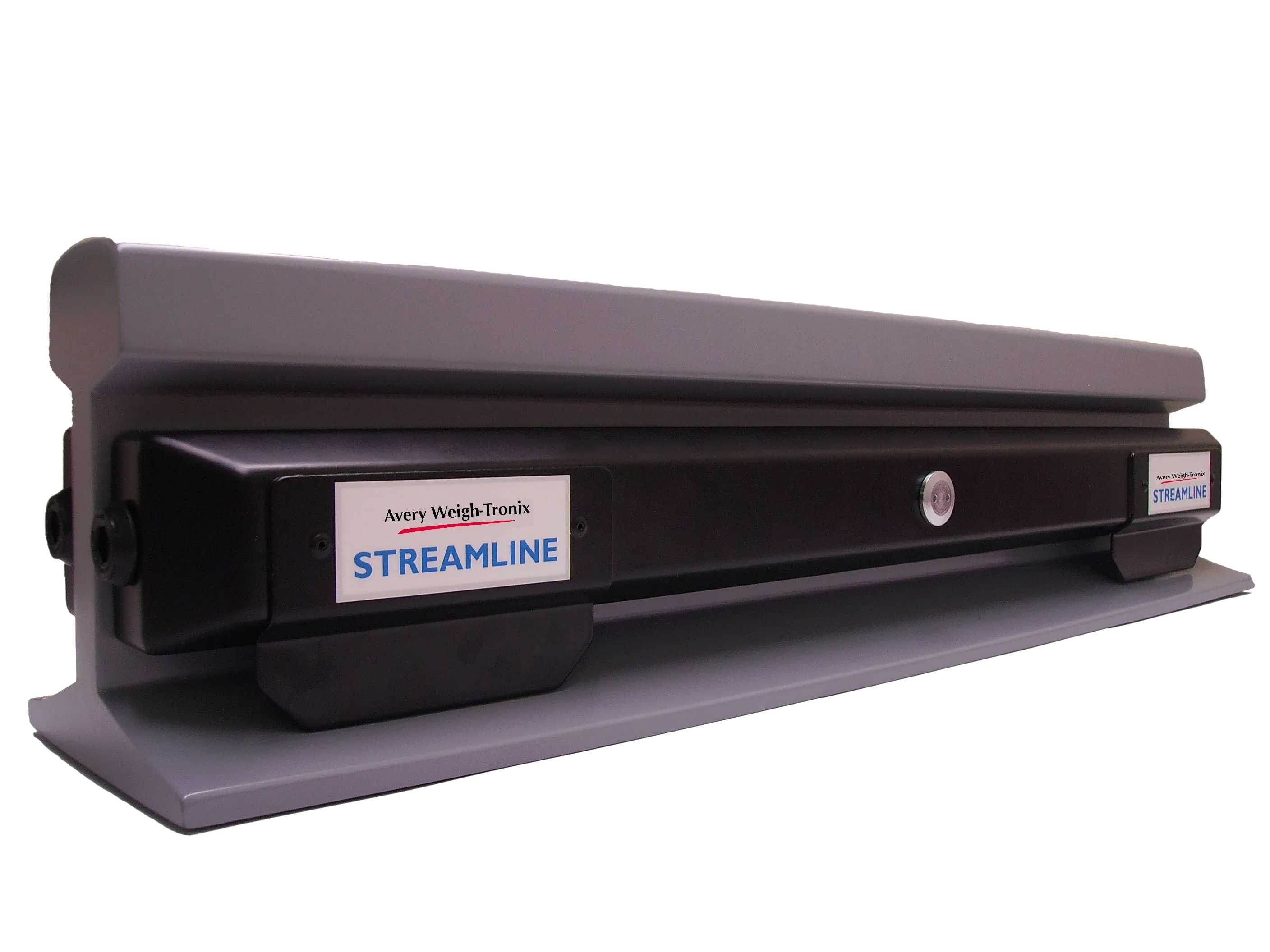

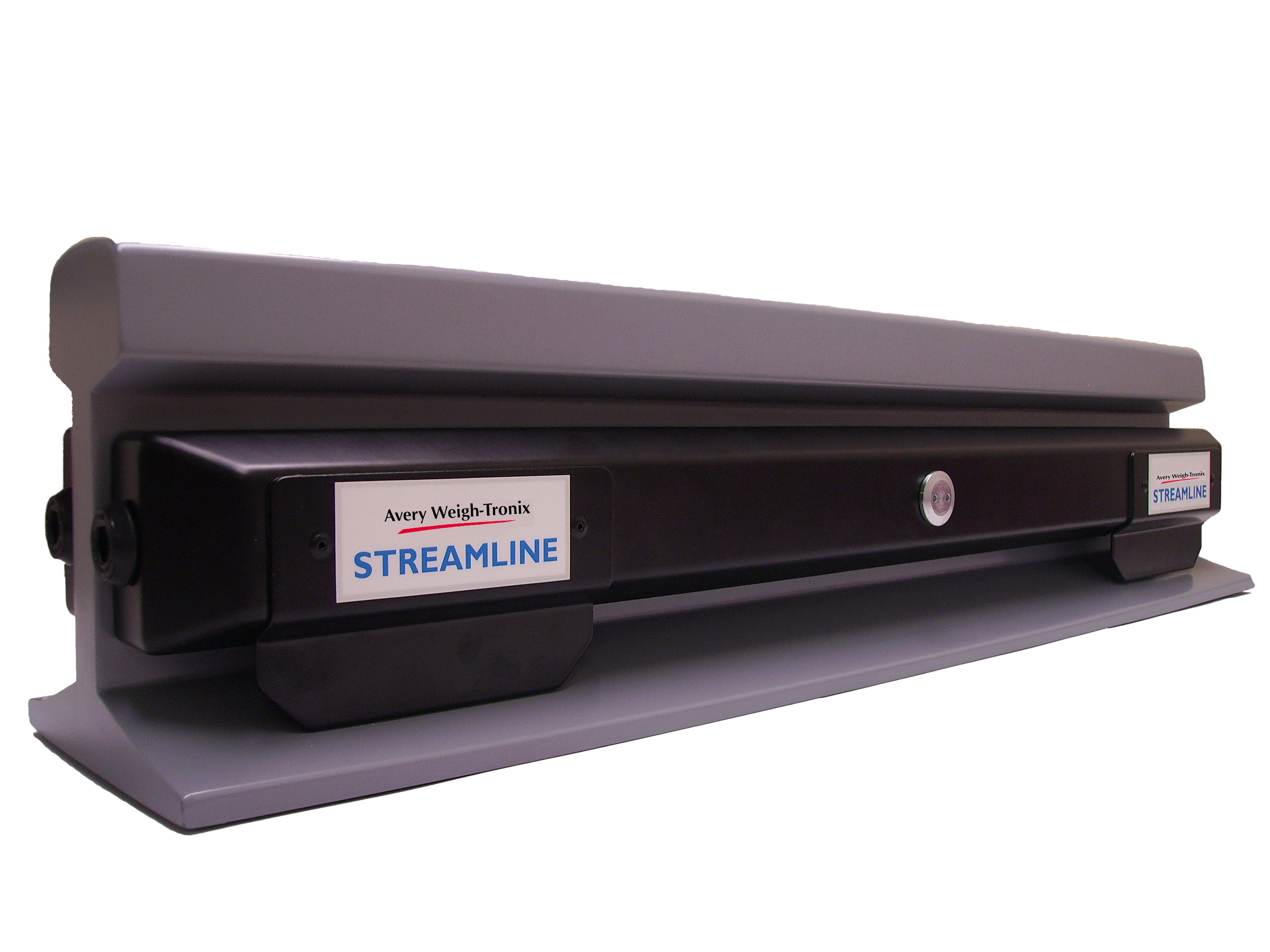

This in-line weighing system consists of bolt-on transducers. They can be quickly installed directly onto the track without the need to cut or weld rails.

Wheel weight capability to ensure safety and legal compliance

Streamline can provide actual wheel weights, helping to identify imbalance and overloading, ensuring safety and avoiding financial penalties.

Simple operation remote-monitoring capability

The system can be integrated with any Automatic Vehicle Identification (AVI) system – enabling you to monitor an entire rail vehicle fleet automatically from a head office, terminal or network hub.

Weighs in-motion highly accurately

Streamline will weigh cars and wagons travelling at up to 25km/h, providing an affordable, reliable and OIML compliant solution with accuracy up to Class 0.5

WEBSTRBOTWS

  • Maximum Axle Load 40000kg
  • Maximum Car Weight 160000kg
  • Maximum Weighing Speed 110km/h
  • Rail Type 115 Lb Arema
  • Power Source —
  • Mounting Inline Mounting
  • Legal for Trade Capable Yes
  • IP Rating Ip67
  • Material Steel
  • Weighing Increments 10kg
