DEBWB Double Ended Batching Weigh Bars

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales.

You are here: Home » Products » DEBWB Double Ended Batching Weigh Bars

Overview

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption to your operations.

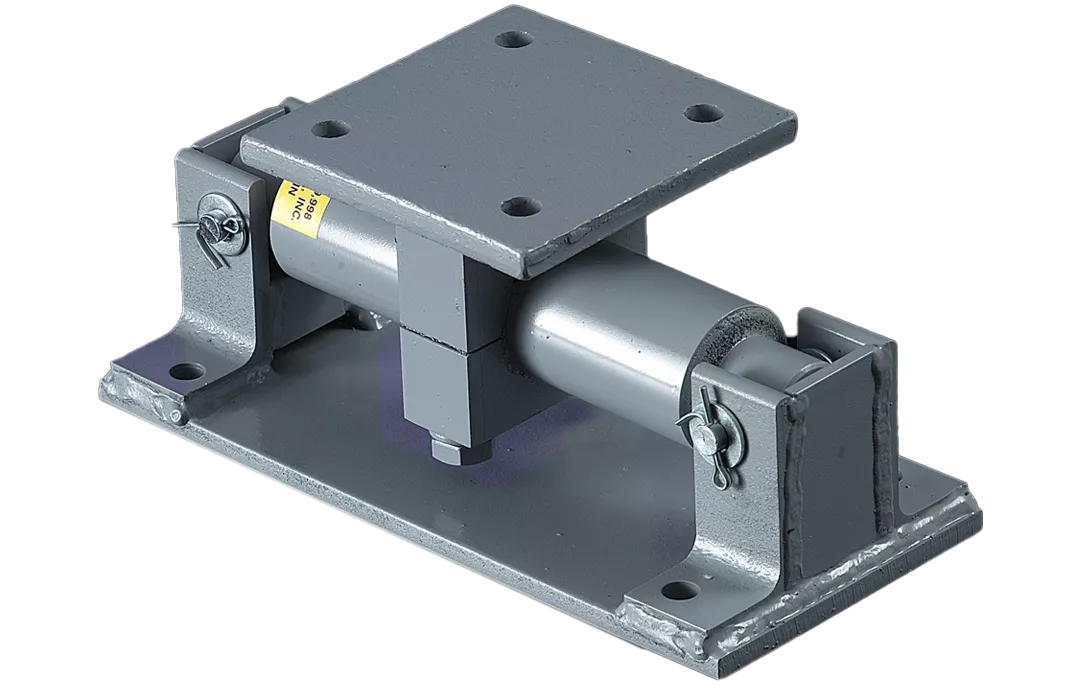

The DEBWB is a 350 ohm, full bridge, double ended batching Weigh Bar mounted in a bracket assembly.

Corrosion protection, mild steel weigh bar available in a range of capacities

The DEBWB is made of mild steel finished with epoxy paint for corrosion protection.

They are available in kits with capacities from 750 lbs to 400,000 lbs. It is not approved for trade by weight and comes with a 0.25% accuracy rating.

Ideal for food and chemical weighing applications

The DEBWB features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem.

The chain link assemblies are also fully washdown protected, for food and chemical applications.

13586-0021MTS

  • Height 9in
  • Maximum Capacity 50000lb
  • Weighing Increments 10lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 20000kg
  • Material Mild Steel
  • Weighing Increments 4kg

17203-0033MTS

  • Height 6in
  • Maximum Capacity 5000lb
  • Weighing Increments 1lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 2000kg
  • Material Mild Steel
  • Weighing Increments 0.4kg

17203-0058MTS

  • Height 7in
  • Maximum Capacity 10000lb
  • Weighing Increments 2lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 4000kg
  • Material Mild Steel
  • Weighing Increments 0.8kg

17203-0074MTS

  • Height 7in
  • Maximum Capacity 12500lb
  • Weighing Increments 2.5lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 5000kg
  • Material Mild Steel
  • Weighing Increments 1kg

17203-0090MTS

  • Height 8.75in
  • Maximum Capacity 20000lb
  • Weighing Increments 4lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 8000kg
  • Material Mild Steel
  • Weighing Increments 1.6kg

17203-0116MTS

  • Height 9.38in
  • Maximum Capacity 25000lb
  • Weighing Increments 5lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 10000kg
  • Material Mild Steel
  • Weighing Increments 2kg

18395-0039MTS

  • Height 4in
  • Maximum Capacity 1250lb
  • Weighing Increments 0.25lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 500kg
  • Material Mild Steel
  • Weighing Increments 0.1kg

18545-0038MTS

  • Height 5in
  • Maximum Capacity 2500lb
  • Weighing Increments 0.5lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 1000kg
  • Material Mild Steel
  • Weighing Increments 0.2kg

18580-0018MTS

  • Height 10.5in
  • Maximum Capacity 75000lb
  • Weighing Increments 15lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 30000kg
  • Material Mild Steel
  • Weighing Increments 6kg

18613-0019MTS

  • Height 12in
  • Maximum Capacity 100000lb
  • Weighing Increments 20lb
  • Load Cell Type Bending Weigh Bar
  • Maximum Capacity 40000kg
  • Material Mild Steel
  • Weighing Increments 8kg
