ZM201 Series Indicators

Ideal for applications that require a basic weighing indicator for performing Zero, Tare and Print functions

You are here: Home » Products » ZM201 Series Indicators

Overview

ZM201 Series indicators are ideal for applications that require a basic weighing indicator for performing Zero, Tare and Print functions. Available in a range of enclosure types, the ZM is suitable for a range of different applications.

The ABS Enclosure is constructed from an extremely rigid plastic which is renowned for its strength and impact resistance. This type of enclosure is also ideal for use in office environments.

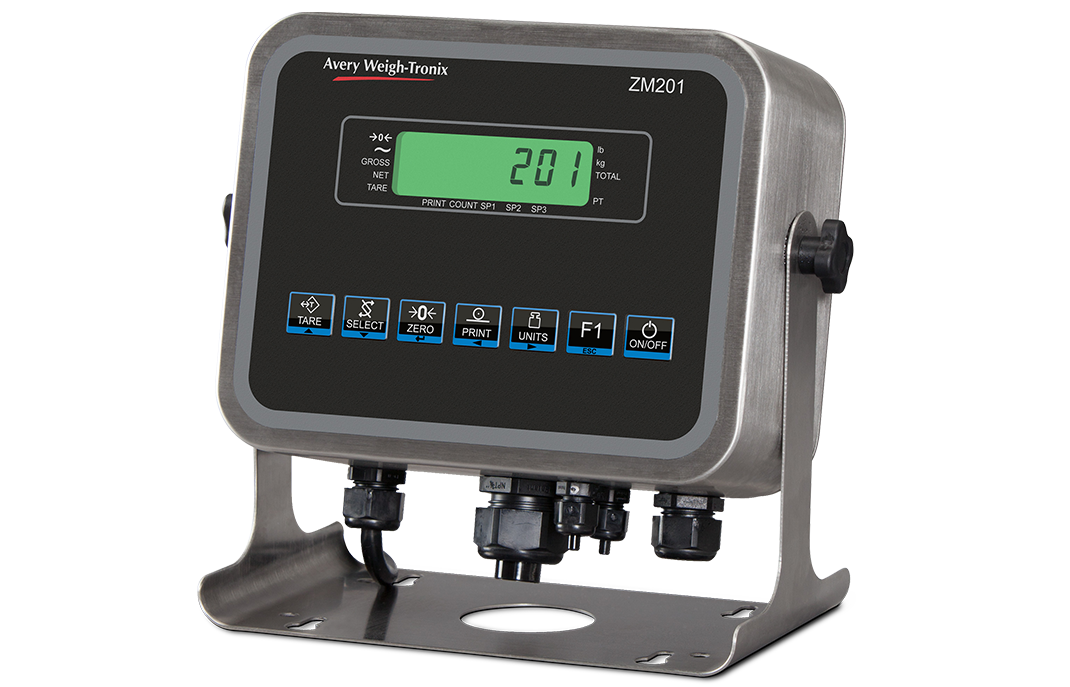

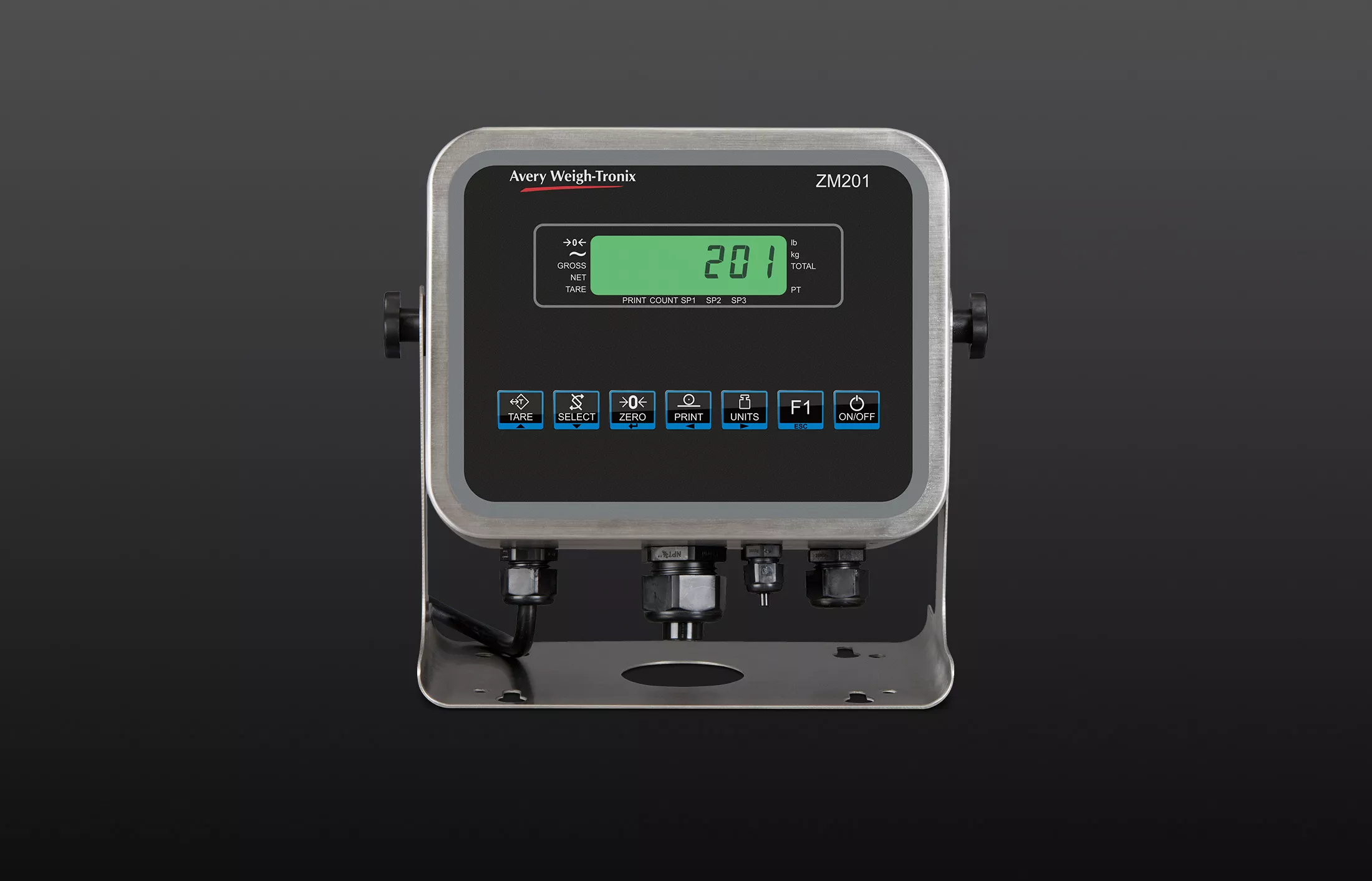

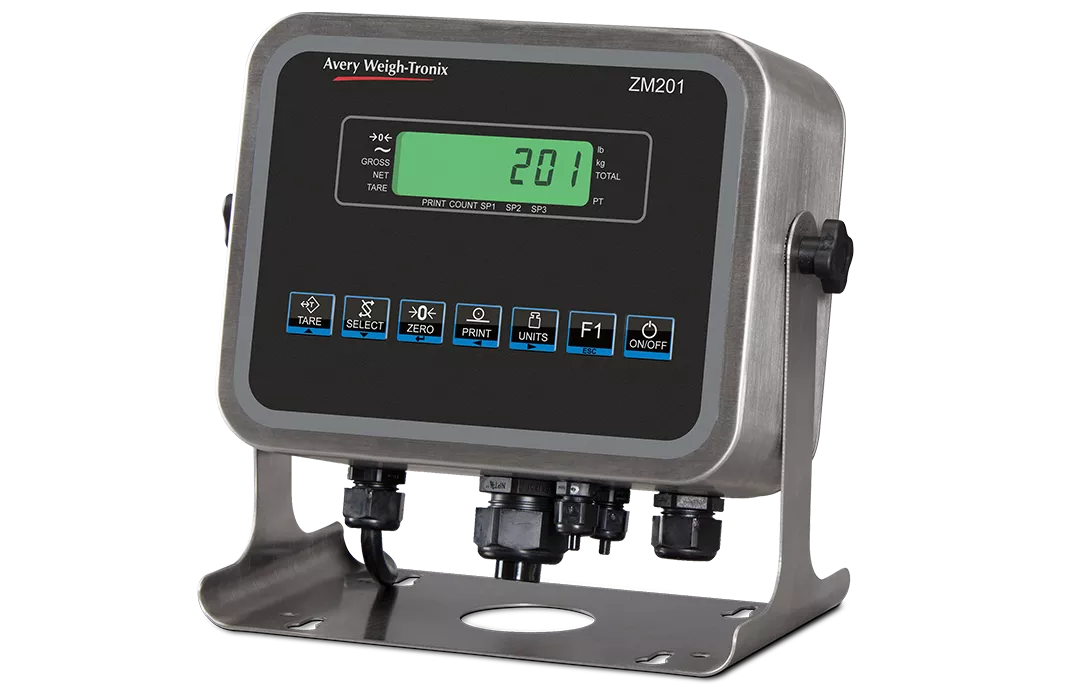

The IP66 Stainless Steel Enclosure rated enclosure offers complete protection against dust ingress, along with resistance to water jets, making it suitable for use outdoors or in dusty/wet indoor environments.

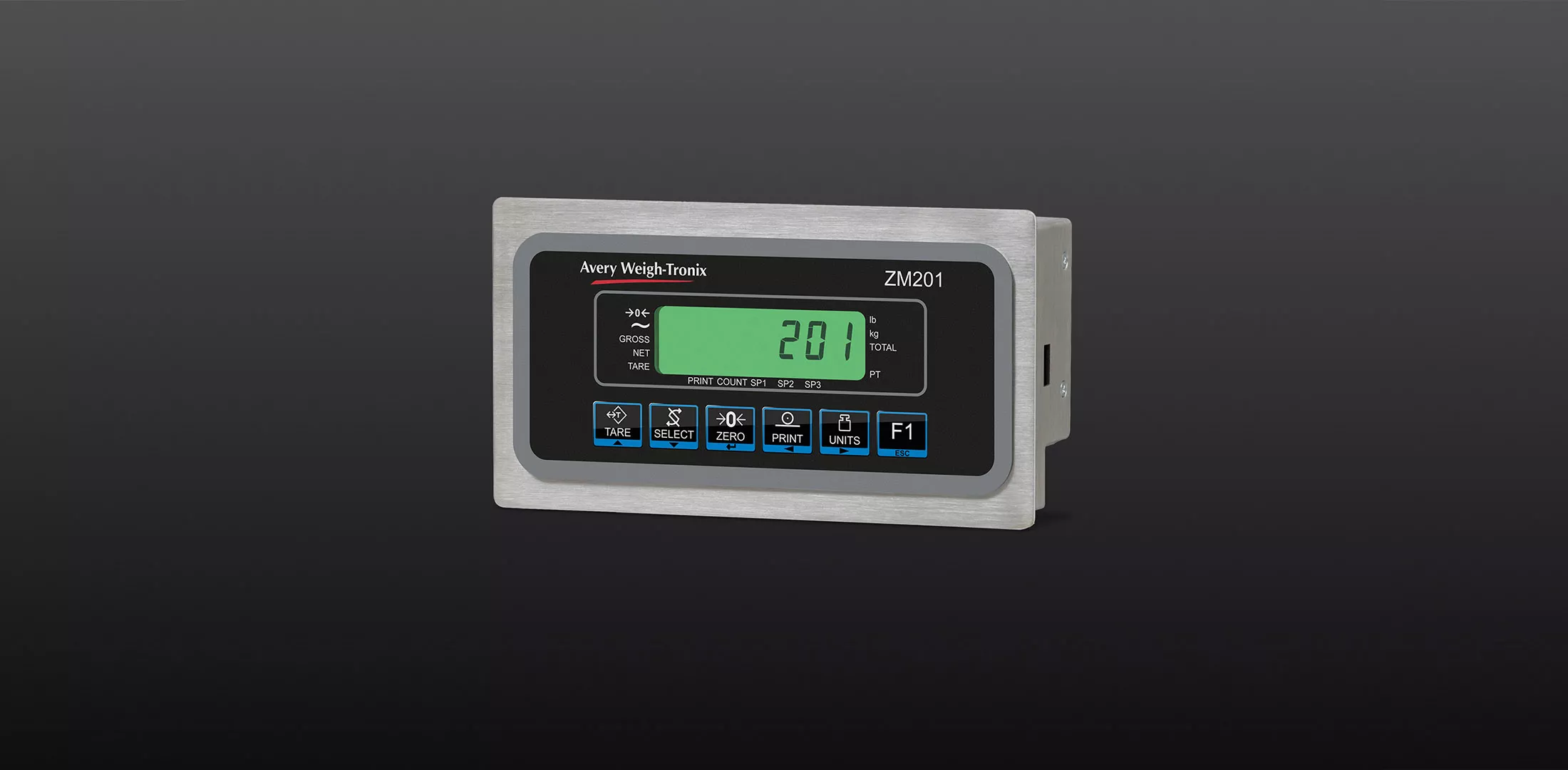

This IP66 rated panel mount model also offers resistance to dust and water, in an enclosure designed specifically for easy installation in control room applications. For applications where data is essential for logging and processing, but no visual weight display is required, the signal processor provides an ideal alternative to a standard weight indicator.

Each ZM201 Indicator features:

As well as straightforward weighing functions, the ZM201weight indicator comes with in-built applications. This includes checkweighing, counting routines, process control and peak hold. This allows you to collect data and keep your business running efficiently.

The ZM201 features a bold and easy to read TN display. This can then be read in a variety of lighting conditions, from bright sunlight to dimly lit environments.

The use of this technology, along with the large digit display, offers extended viewing angles. This then makes it easy to read from a distance, reducing operator error and eye strain.

WEBZM201FSI

  • Hazardous No
  • Screen Type —
  • ATEX Yes
  • ATEX Zones —
  • Length 10.2cm
  • Power Source —
  • Height 16.5cm
  • Width 24.5cm
  • Mounting —
  • Legal for Trade Capable Yes
  • IP Rating Ip20
  • Material Abs Plastic

WEBZM201PM

  • Hazardous No
  • Screen Type —
  • ATEX Yes
  • ATEX Zones —
  • Length 5.4cm
  • Power Source —
  • Height 10.9cm
  • Width 20.1cm
  • Mounting —
  • Legal for Trade Capable Yes
  • IP Rating Ip66
  • Material Stainless Steel

WEBZM201SS

  • Hazardous No
  • Screen Type —
  • ATEX Yes
  • ATEX Zones —
  • Length 12.7cm
  • Power Source —
  • Height 22.2cm
  • Width 21.4cm
  • Mounting —
  • Legal for Trade Capable Yes
  • IP Rating Ip66
  • Material 304 Brushed Stainless Steel

Related resources

IP Ratings Frequently Asked Questions Download
IP Ratings Frequently Asked Questions – German Download
IP66 Frequently Asked Questions – EN Download
ZM201 Indicator – Frequently Asked Questions – EN Download
ZM201 Indicator Brochure – EN Download
ZM201 Indicator Service Manual – EN Download
ZM201 Indicator Technical Specification – EN Download
ZM201 User Manual – EN Download
